Pleochroma GitHub
Desktop application

The studio & faceting CAD

pleochroma-cut — a Slint desktop application: design library, live spectral viewport, a constraint-based faceting editor, a rough planner and guided tutorials.

Read the user manual

This page is an overview. The user manual explains every window step by step; begin with Chapter 1, Getting Started. Inside the program it opens from Help → User Manual, and F1 opens the page for whatever is on screen.

STATUS

Solving runs on a background solve service with real mid-solve cancellation and a progress-tracked activity list rather than freezing the editor, new designs are guided by a template gallery and by in-app tutorials, and results carry stale badges the moment they no longer match the current design. The features added in October 2026 are the newest part: concave tiers, parametric relations, history and variants, cutting mode, the tutorials and the command palette. They have had less hands-on use than the older parts. The editor's interaction model is still evolving; Pleochroma is meant to grow into a complete faceting suite. The design library and 3D viewport (sections 1–4 below) are more stable than the editor itself and the rough planner (sections 5–11).

1Overview

apps/pleochroma-cut is built with Slint. It combines a design-library browser, a live 3D spectral viewport, and the faceting CAD engine in one window.

Studio main window: design library on the left, the Solid view of the stone on the right with the Solid, Path-Traced and Ray-Traced switch above it
Fig. 1 — Design library on the left, live viewport on the right: the 45.148 SplitChecker 12 design in the Solid view, with the Solid, Path-Traced and Ray-Traced switch, the Spinel material, the Gem Studio Ring Lights preset and the Tilt Curve, Front, Top, Turn 90° and Export buttons above the stone, and the Live Render and Edit tabs at the top right.

The sections follow the window. Sections 2 to 4 cover the library, the viewport and the tilt sweeps. Sections 5 to 10 cover the faceting CAD. Section 11 is the rough planner, sections 12 and 13 are the solid view and export, section 14 is the render queue, sections 15 and 16 cover the tutorials and the interface, and section 17 covers installing the program and the command-line tool.

The native design file keeps all of this. A design with parametric relations is saved as design file version 3, a design with concave tiers as version 2, and a design with neither keeps the version it always had (section 13).

This page describes the desktop application. Most of the features added in October 2026 exist only there; the web app page says what the browser version has. The same engines also run without a window in the command-line tool pleochroma-cli (apps/pleochroma-cli), with the commands info, solve, metrics, validate, optimize, retarget, sweep, export, render and tilt-video; see section 17. Some controls named below are hidden in the Simple interface; section 16 says which.

2The design library

Designs are stored in a local SQLite database (pleochroma-vault) by default — no account, no telemetry — though the library view can also switch to browsing the remote coordinator's catalogue over the network instead. Filterable by shape, index-gear tooth count, refractive-index range, length/width ratio, and facet count. The shape filter is populated partly by automatic classification: girdle facet count and length/width ratio identify a confident round, triangle, square, hexagon, or octagon outline; elongated shapes such as oval, cushion, and emerald are not auto-detected and keep whatever label the source data or a manual edit gives them. Import brings in single .asc, .gem or .gcs files or entire folders (subfolders only when Include Subfolders is ticked before you choose the folder); the original file is preserved alongside the parsed schedule. The import runs in the background with a progress bar, a file that cannot be read is skipped with the reader's own explanation while the rest of the folder still imports, and a summary lists what was imported, skipped, replaced or converted with notes. A .gem or .gcs is stored with a generated .asc and the original attached (see section 13 for the formats).

The Library menu holds the whole-library actions. Regenerate All Preview Images..., Regenerate All Tilt Curves... and Regenerate Both... rebuild the cached preview thumbnails and tilt curves for every design in the library; each one opens a confirmation step first and is greyed out only while such a batch is already running. (The filter panel has a matching pair of buttons that regenerate just the filtered set.) Plan Rough... opens the Rough planner (section 11), which draws its candidate designs from this library.

The preview thumbnails are rendered in the white tray lighting, a bright white surround, with a head shadow of 8°, so that a stone’s body color reads at its true value and many designs compare side by side. They lie on a grey tray by default, so a colorless stone stands apart from its background; Thumbnail Backdrop under Render & Output switches it to white or black. The live view’s default lighting, backdrop and its 16° head shadow are unchanged. A design with concave tiers or frosted facets is previewed with them.

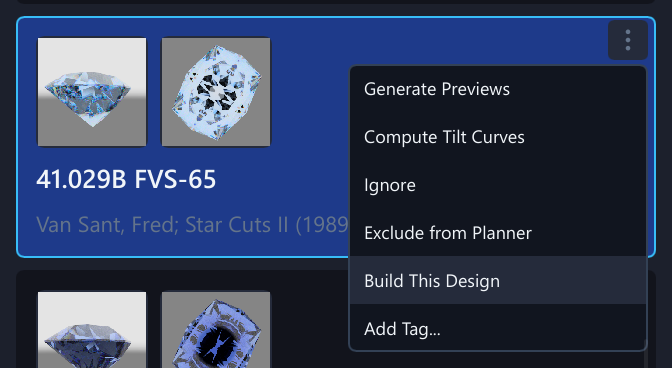

Per-design actions are on the right-click menu of a card, on its three-dot button and in Library → Selected Design. They include generating previews and tilt curves, ignoring a design, excluding it from the Rough planner, and Build This Design, which turns the design into a step-by-step tutorial (section 15).

Some things you make around a design are kept in the library, not in the design file: the variants you save (section 9), the cutting steps you mark done (section 10) and the lighting you save for the design (section 3). The library finds them by the design's id, which the .psdd file keeps in its metadata. Copying the file to another computer copies the design and not this data.

3The 3D viewport

The viewport switches between Solid, lightweight Ray-Traced and full spectral Path-Traced views. Orbit, pan, and zoom with the mouse; the progressive path tracer accumulates samples while the camera is still and resets on any camera or material change. Thirteen lighting presets — an analytic studio rig in five moods (daylight, incandescent, a 2856 K Incandescent A, ring lights and a dark spotlight), eight lit models (a Grading tray hemisphere, the default jewellery light tent and its even white-tray, jewellery-shop and window-daylight variants (with a built-in Window daylight view that puts the light at 30°), a daylight sky without a sun, a daylight sky with a real 0.27° sun, and a green/red/blue contrast view in the style of an ASET scope, scored as the Grading tray; see the physics page) — plus an optional backdrop under the stone (a lit tray: White by default, Grey, Black or As Lit; the Studio Softbox lighting brings the Grey tray and Dramatic Spotlight the Black one), a surface-glare slider that fades the white mirror image of the light on the table (the cross-polarised look; built-in presets only, never the readouts), and custom HDR equirectangular environment maps, are all supported, along with live readouts of brilliance, fire, scintillation, windowing, and extinction as the stone is orbited. The head-shadow slider (0–30°, default 16°, 0 is off), which darkens the facets that would reflect the observer's own head, changes those readouts as well as the picture under the lit models; the studio rigs and an HDR map ignore it. The Grading tray is the light the optimizer and Retarget score under. If the optional GPU compute path loses its device mid-session, the viewport re-acquires it once and retries the same frame; if that also fails it falls back to the CPU tracer for the rest of the session with a visible status message, rather than freezing.

Exposure is the Overall Brightness slider of the Lighting tab, from 0.2× to 5× (default 1×), and it scales the light of every built-in lighting; a loaded HDR map ignores it. The light direction is an azimuth (0–360°, default 48°) and an elevation (about 8.6° to 88.8°, default 72°), set by two sliders in Settings or by right-dragging (or Shift + left-dragging) in the viewport; it moves the light tent's softbox, the sun and the studio key light, and the Grading tray does not depend on it. A view is a lighting preset plus a light direction, an exposure and a camera distance (the Grading tray also a camera pose). Seven come with the app, and the Lighting Presets list in Settings also holds the ones you save yourself, each markable as usable in the export dialog:

ViewLighting presetAzimuth / elevationExposure
Studio SoftboxGem Studio Ring Lights48° / 54°1×
Daylight BrightD65 Daylight (6500K)30° / 65°1.3×
Dramatic SpotlightDramatic Dark Spotlight300° / 25°0.7×
Light TentLight tent + black cards48° / 72°1×
Grading trayGrading tray (D65 hemisphere + head shadow), seen from almost straight above48° / 72°1×
Daylight SunDaylight sky + direct sun30° / 55°1×
Window daylightWindow daylight40° / 30°1.2×

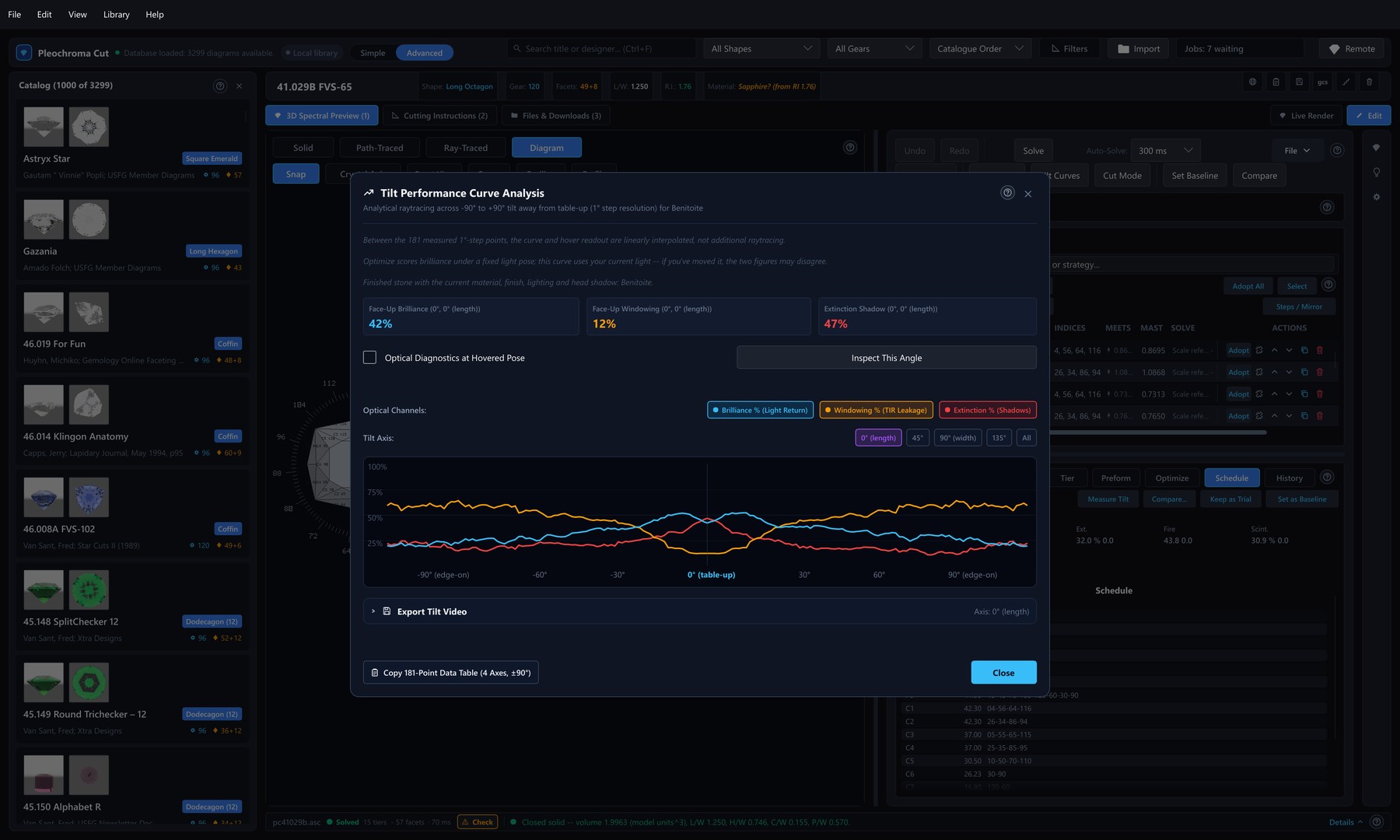

The editor's view bar with the tilt dialog open over the Diagram view
Fig. 2 — The view bar in Edit mode: Solid, Path-Traced, Ray-Traced or the faceting diagram, fixed directions, Fit and Reset, and Tilt Curve, here opened over the Diagram view.

The Color button in the Live Render toolbar shows the stone in another color without making a custom material. Its list holds Material Default, the color variants of the material (and your own saved ones), nine ready-made colors (Clear, Blue, Red, Green, Violet, Yellow, Pink, Teal and Amber) for a material that has one color in every direction, and Custom Color..., which opens a color editor with three sliders, Tone, Saturation and Hue (the L*, C* and h of the L*C*h color space), and a hue, saturation and brightness picker as an alternative. A pleochroic stone keeps its pleochroism: the editor has one such color for each direction of the crystal, and Save as Variant... keeps the result. When the view shows the design that is open in the editor, the pick becomes that design's own color, in one undo step. For anything else, such as a design you only browse, the pick changes this view only and the app remembers it. Whatever color the view shows is also the color of the metrics, the tilt curves, high-resolution exports, the tilt video and renders done by remote workers. A material that defines its own color disables the button.

The same color editor opens from two more places: Custom... in the Body Color box of Design settings (the design's own color, applied in one undo step) and Pick... in the Material Editor, where Save keeps the color in a custom material. The color of a gem depends on the length of the light path, so the editor shows what you chose as four swatches, at 3 mm, 5 mm, 10 mm and This stone (the design's own size, 5 mm while no girdle diameter is set), and the design keeps it as an absorption spectrum per millimetre: a larger stone renders deeper and a smaller one lighter. A badge says Reachable with the color difference (Delta E) from your request, or in amber that the color is not fully reachable at this size and how far the closest reachable color is; very rich colors are not all reachable. A custom material keeps its seven-band color, and the web app has the same editor.

A design can also remember its lighting. Use This Lighting for This Design in Settings saves the lighting rig, the light's position and height, the exposure, the surface glare, the backdrop and a loaded HDR environment map. It does not save the camera. The lighting is kept in the library under the design's id and never in the design file. It is applied when the design is opened in the editor, and not when you click a row in the catalogue, so you can compare many designs under one lighting.

Optical Diagnostics marks where light is lost or returned. In Live Render, tick Enable Optical Diagnostics and pick the layers: Windowing (/) as cyan lines, Extinction (X) as magenta crosses, Brilliance (Dots) as green dots and Fire (Dispersion Potential) as gold stipple. The layer is a separate analytical pass aligned with the camera and drawn over the picture. It is off at first, its opacity starts at 45 %, and it does not change the render. A small map (128 pixels on the long edge, one sample) appears when the view settles, and a 320-pixel map of four samples replaces it. Refresh Diagnostic Map recomputes it, Diagnostic Map on Neutral Stone replaces the parts of the stone you did not select with neutral grey, and the layer is not available under the contrast view (ASET). The figures are shares of the stone’s visible area, so they differ from the live readouts. A still export can include the layer with a .optical.txt legend beside the picture, the tilt video can include it with a caption, and a render job keeps the choice.

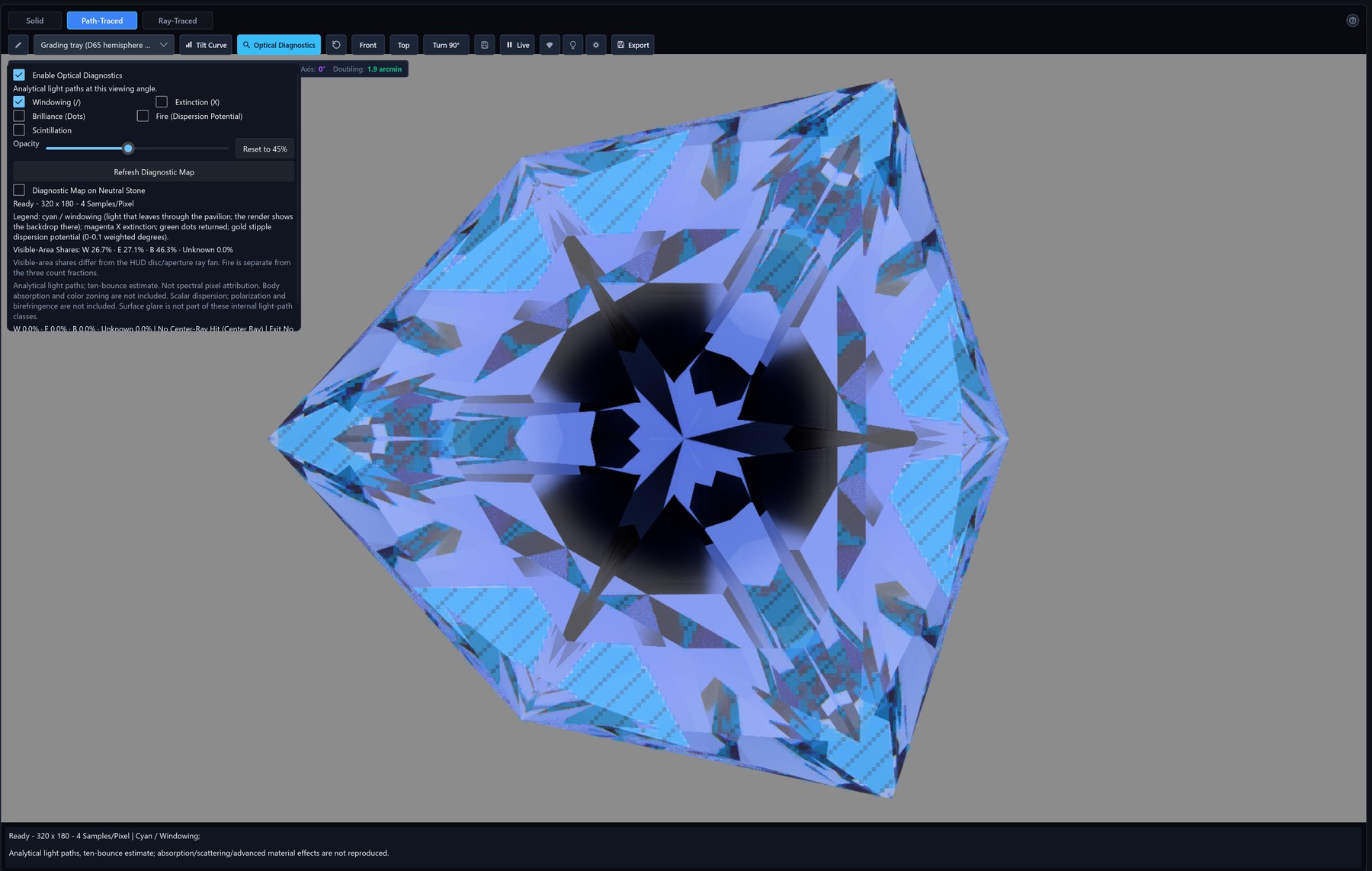

Optical Diagnostics with Windowing on: cyan hatching over the render
Fig. 3 — Windowing (/) on: cyan hatching over the render where light leaves through the pavilion and the backdrop shows through. The status line reads Ready · 320 × 180 · 4 samples per pixel.

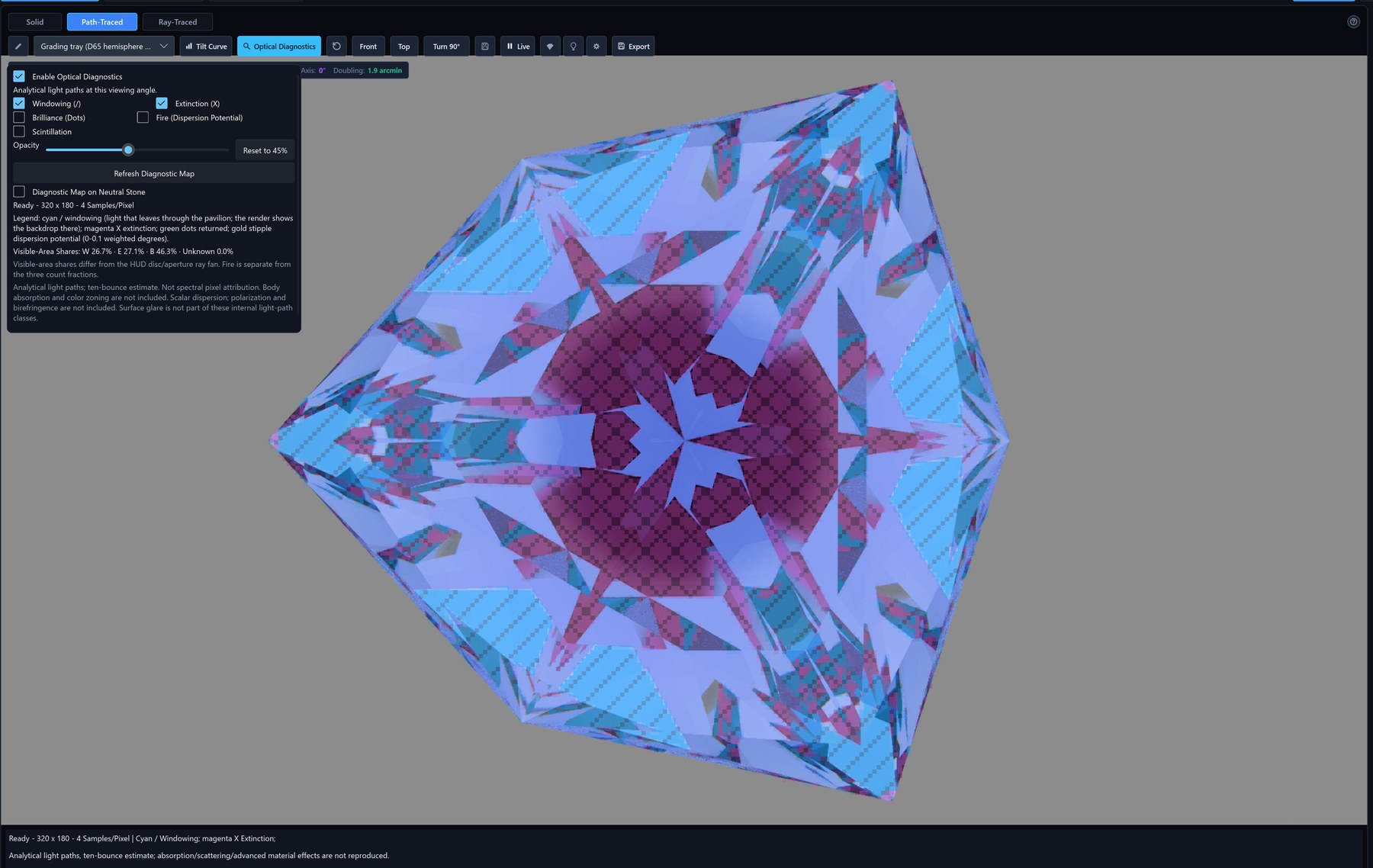

Optical Diagnostics with Windowing and Extinction: cyan hatching and magenta crosses over the render
Fig. 4 — Windowing and Extinction (X) together: magenta crosses where light is trapped or lost, cyan hatching where it leaks; the render stays visible under the layer.

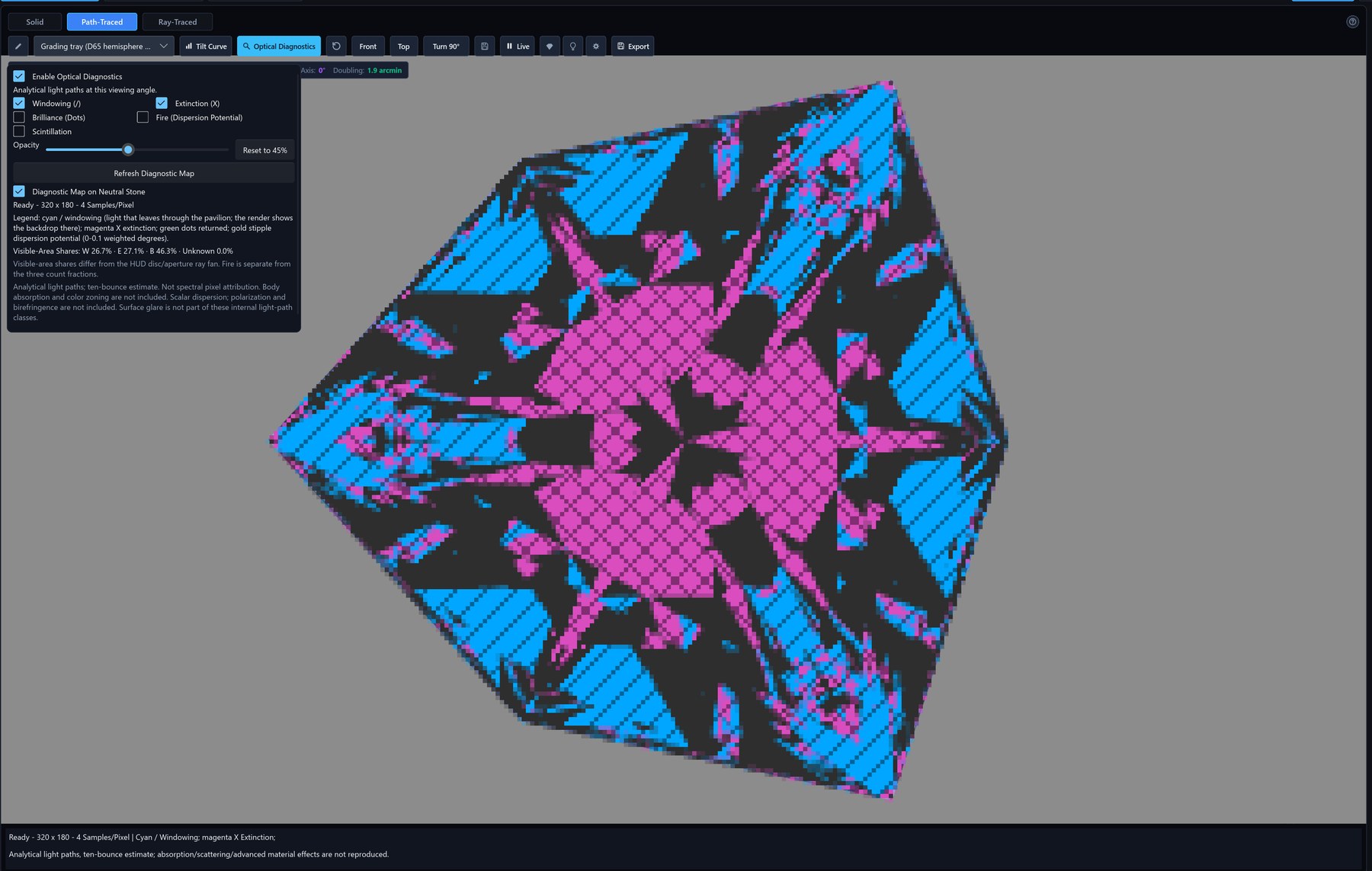

Windowing and Extinction on a neutral grey stone
Fig. 5 — The same two layers with Diagnostic Map on Neutral Stone: the stone is drawn neutral grey, so only the chosen classes carry color.

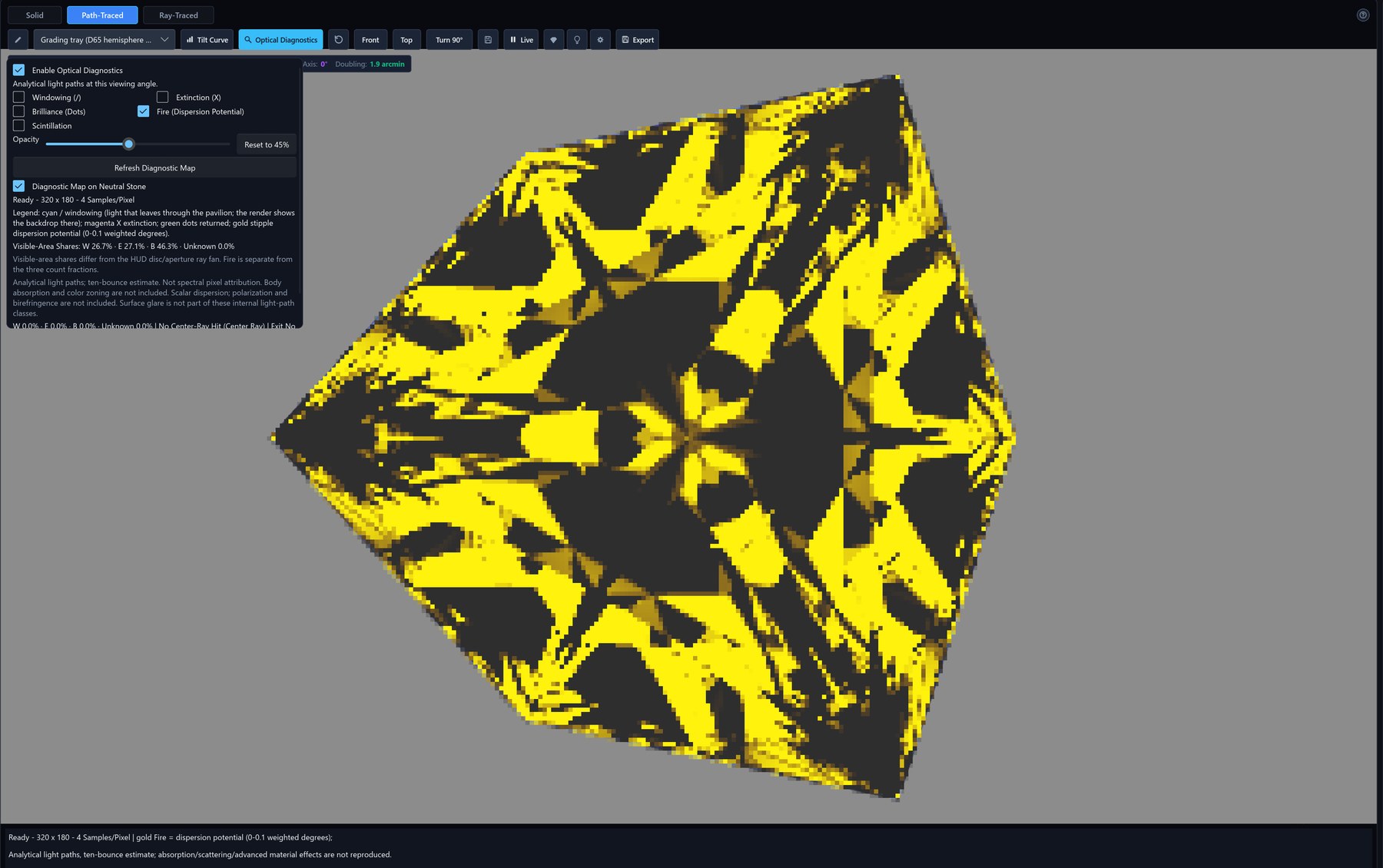

Fire (Dispersion Potential) alone on the neutral stone, in gold
Fig. 6 — Fire (Dispersion Potential) alone on the neutral stone: gold where the dispersion potential is high, on the 0–0.1 weighted-degree scale of the legend.

A custom material can be entered as a Sellmeier fit (one or three terms) or a Cauchy fit instead of two sliders. The editor shows the index at the sodium, blue and red lines and the Abbe number. It refuses a curve with a resonance inside 300–800 nm, an index that does not stay above 1 or an index it cannot calculate, and it warns about curves that are possible but suspicious. The stone is then traced with the full curve on the GPU, on the CPU and on remote workers (see the materials page).

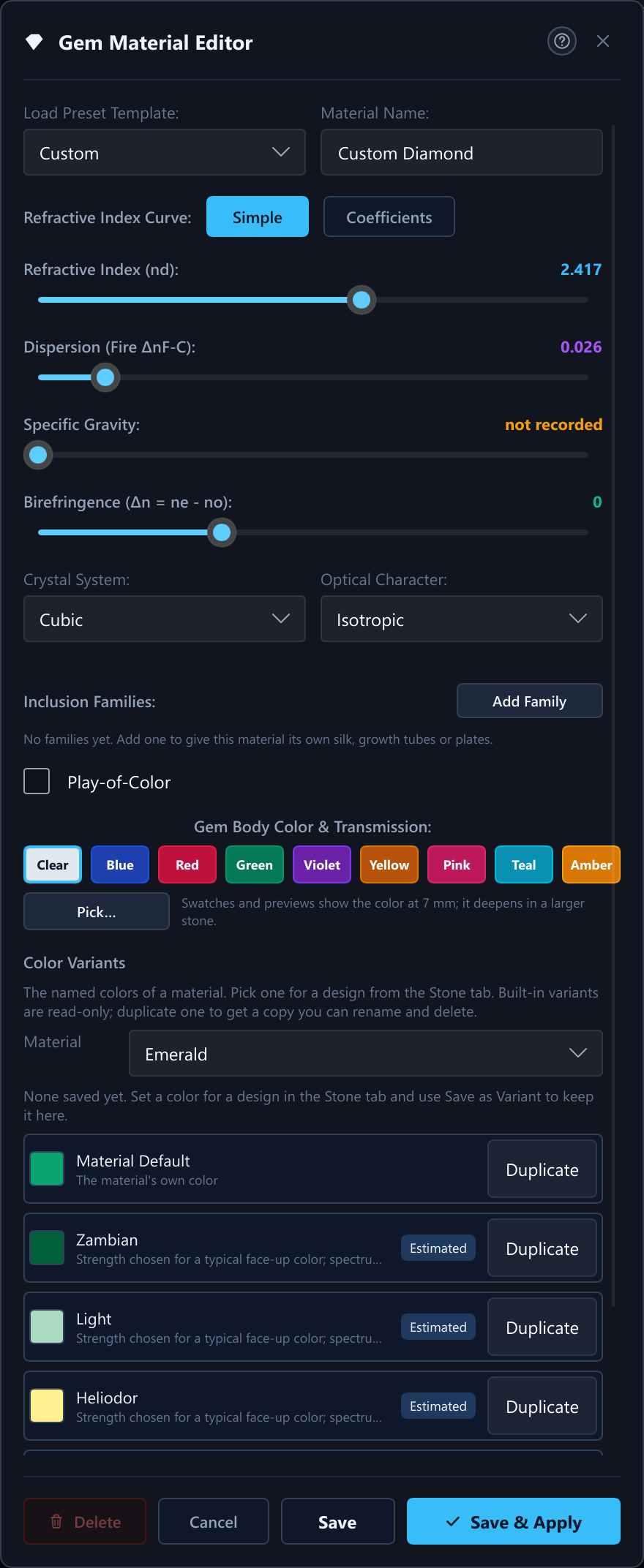

The Gem Material Editor with the Simple curve sliders and the body color swatches
Fig. 7 — The Gem Material Editor in Simple mode: the preset template and the material name, the refractive index, dispersion, specific gravity and birefringence sliders, the crystal system and optical character, the Inclusion Families list with Add Family, the Play-of-Color box, the body color swatches with Pick, the Color Variants list (a material menu, Material Default and the named variants, each with Duplicate), then Delete, Cancel, Save and Save & Apply.

Color patterns

A custom material can have zones of different colors, for example a pink core inside a green rim. The Material Editor's Color Pattern section (Add Pattern..., Edit Pattern..., Remove Pattern) opens the Color Pattern Editor, a window of its own. You start from a template (Uniform, Bicolor, Tricolor, Banded, Watermelon, Reverse Watermelon, Core and Rim, Split or Sectors) or a saved preset, then give each zone a name, a color, a shape and a size. A pattern has a base zone and up to four more; later zones cover earlier ones. A zone can take its colors from the Colors menu (one color, an Along and an Across color, or Alpha, Beta and Gamma, by the crystal of the material) or from a color variant of the material. The pattern has an axis (Table Normal, Across or Across Turned), either scales with the stone width or stays fixed in millimeters, and has a boundary from sharp to soft. Three previews, Crystal, Current Design and Cross-Section, show the result, and the window has its own Undo and Redo. Patterns show in the Path-Traced views, in render jobs and on remote workers that support zoning; the Ray-Traced view shows the base color. The materials page has more.

The Live Render picture follows the Edit tab's Cut slider (section 12) and shows a badge with a Show Finished button while the stone is cut back. A stone with concave tiers (section 7) is traced with its tools on the GPU and on the CPU, up to the 128 tool placements a design can hold. A remote worker receives the tools with the scene and traces the same stone.

4Tilt performance sweeps

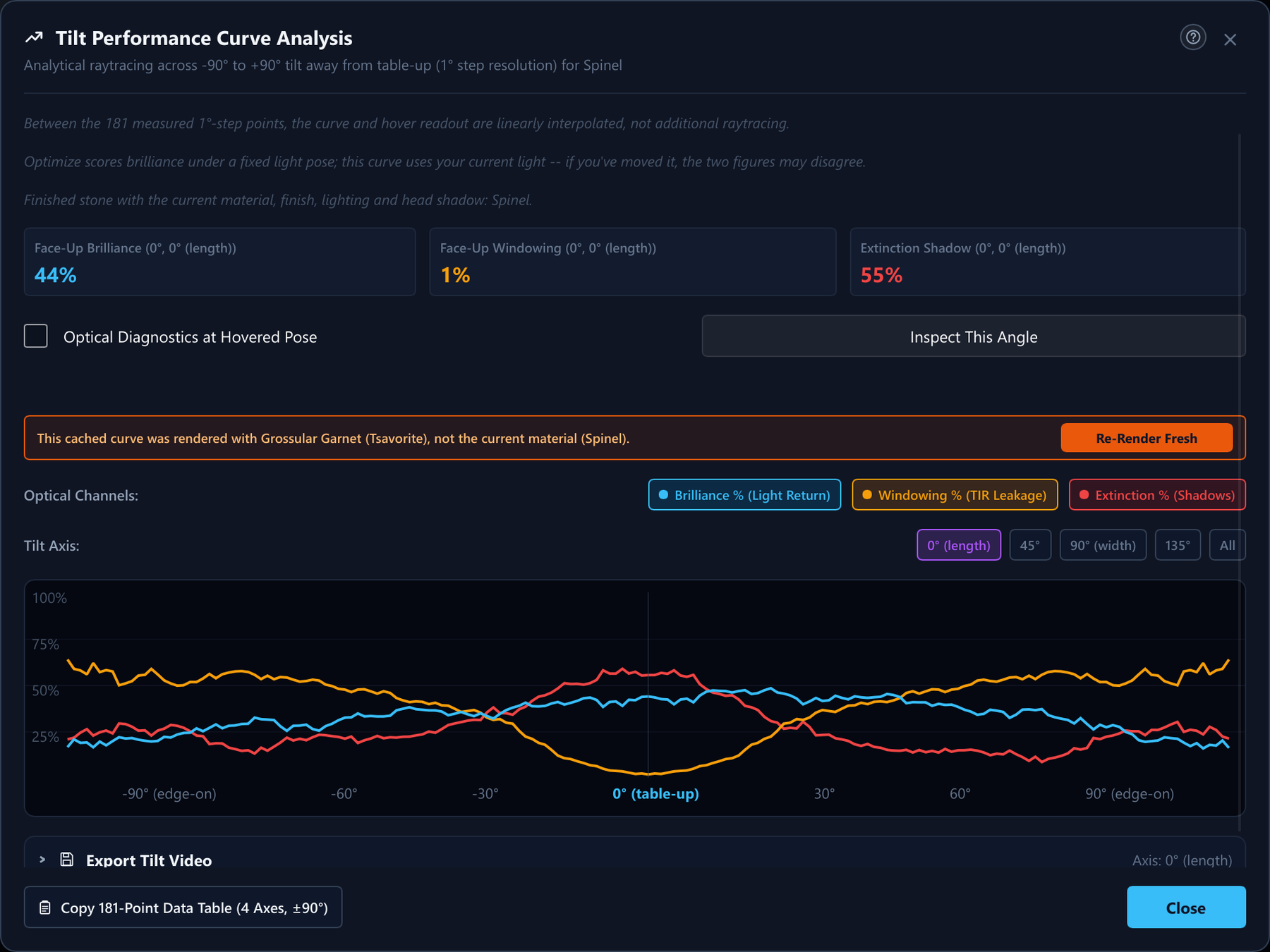

Tilt Performance Curve Analysis dialog
Fig. 8 — Brilliance, windowing and extinction across a tilt sweep: 181 points from −90° to +90° on one of four camera azimuths, with the face-up figures above the chart and, when the cached curve was rendered with another material, an orange banner with Re-Render Fresh.
Export Tilt Video panel of the tilt dialog
Fig. 9 — Export Tilt Video, unfolded below the chart. The panel scrolls, so only its header line is in view; the Include Optical Diagnostics (4 Samples/Pixel) box, the material, the angle range and step, and the frame rate, resolution, samples per pixel, bounces, color space and transfer follow below it.

A cut that looks brilliant face-up can black out or window heavily at a few degrees of tilt. Pleochroma sweeps a 181-point tilt profile (±90°) at each of 4 fixed camera azimuths — 0°, 45°, 90°, 135° (PROFILE_AZIMUTHS_DEG, crates/pleochroma/src/color/metrics/profile.rs) — and plots brilliance, windowing, and extinction together so a design's behaviour in the hand, not just face-up, is visible. The curves follow the stone’s frosting (section 5): a frosted facet scatters light, so a frosted design’s curves differ from its polished ones. A design without frosting is swept exactly as before.

A tilt sweep can also be exported as a video: pick one of the four camera azimuths as the sweep axis, a step from 0.01° up to 5° between frames (MIN_STEP_DEG/MAX_STEP_DEG, apps/pleochroma-cut/src/gui/tilt/video_export/params.rs), and a resolution from 128 × 128 up to 8K (7680 × 4320), or a custom size clamped to the same 128–8192 px range per axis. An optional performance overlay burns the brilliance/windowing/extinction readout into each frame in a layout that adapts to the chosen width. Every frame renders through the same local CPU/GPU/hybrid setting and configured remote coordinator as a still-image export — not a separate, CPU-only tracer — including the same Transfer choice while a remote is configured: Full Data merges the remote's samples with the local lanes, Final Picture Only has the coordinator send one finished PNG per frame while the local lanes stay idle. The live viewport pauses for the whole video's duration exactly as it does during a still-image export, and never shares the app's single GPU adapter with it while it runs. The numbered PNG sequence is then muxed into an H.264 MP4 with ffmpeg when it is found on PATH, an animated GIF via the image crate when it is not, or, failing both, left as a PNG sequence with a README.txt explaining how to mux it by hand.

5Constraint solver and tier editor

Edit mode on 41.029B FVS-65: solid view with a selected crown tier, tier table and tier inspector
Fig. 10 — Edit mode on 41.029B FVS-65 (Long Octagon): the solid view with the crown tier C3 selected and its angle and index handles, the Solid, Path-Traced, Ray-Traced and Diagram switch above it, the tier table beside it and the Tier inspector, with its vs Baseline strip, editing C3.

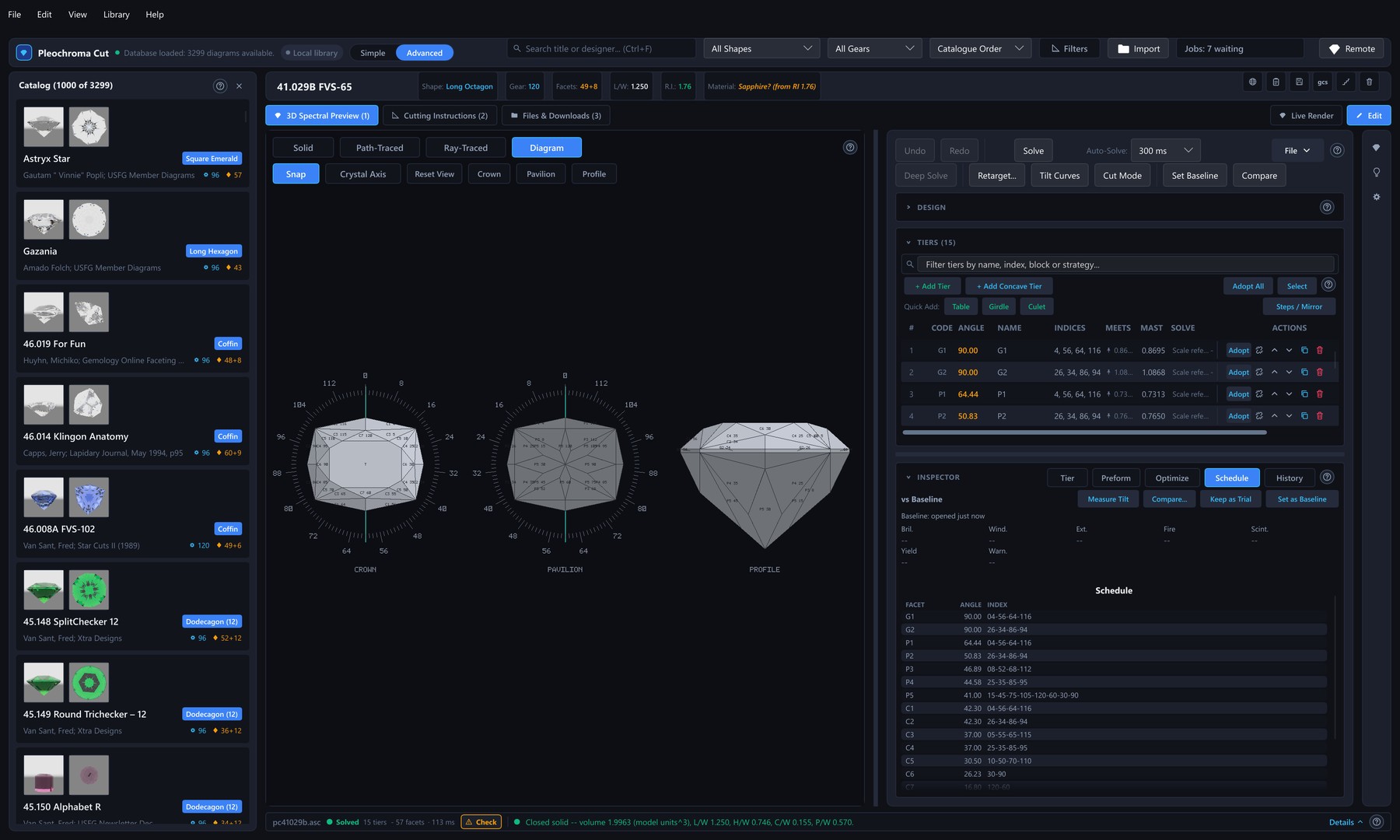

Diagram view: crown, pavilion and profile panels beside the tier table and the Schedule tab
Fig. 11 — The Diagram view of the same design: crown, pavilion and profile on the index-gear scale, with the tier table and the inspector's Schedule tab (facet, angle, indices) beside them.

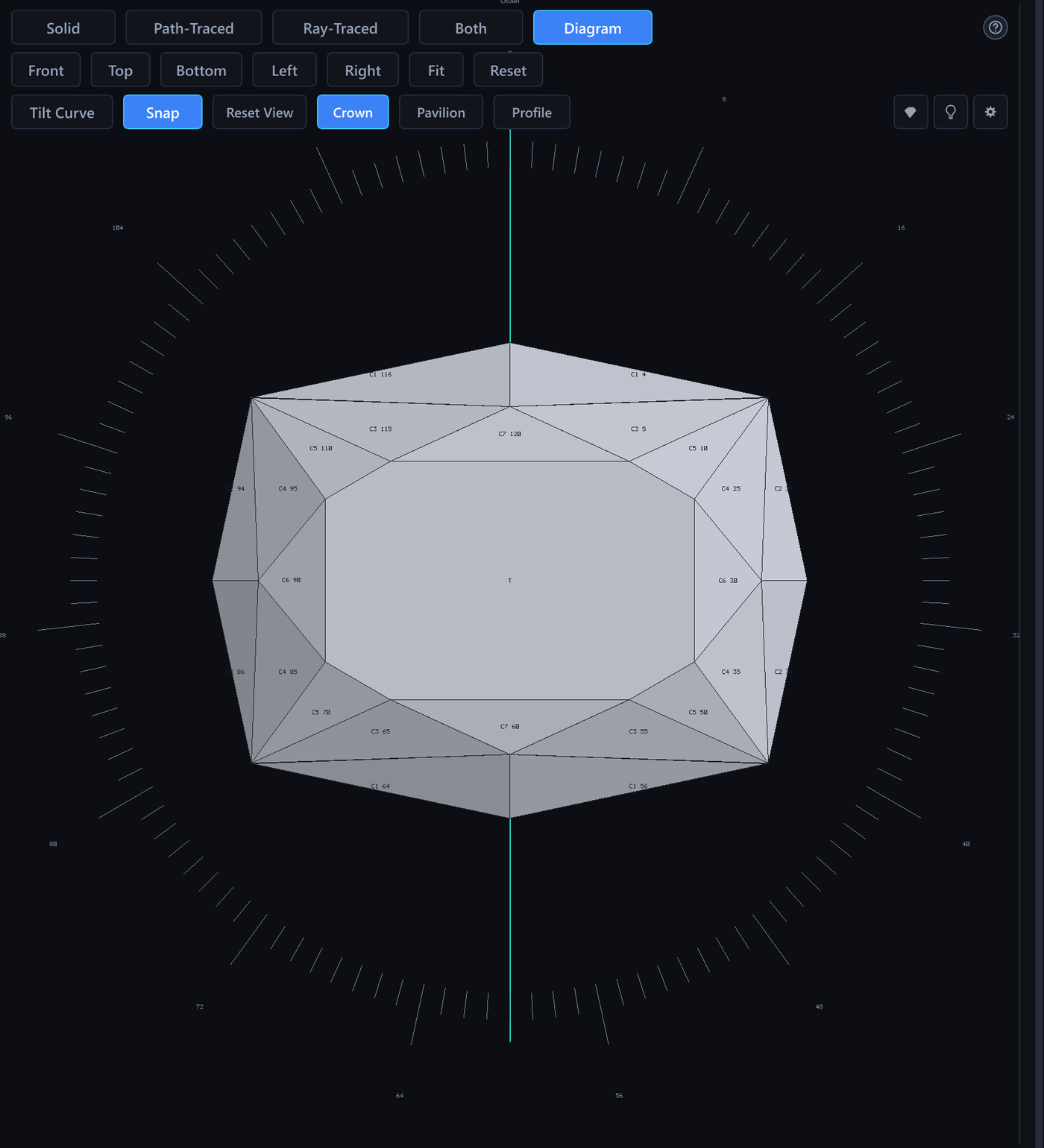

Crown panel of the faceting diagram with facet labels
Fig. 12 — The crown panel alone (Crown in the view bar): every crown facet labelled with its tier code and index position on the index-gear scale.

Cutting instructions are a geometric constraint graph, not a static list of numbers. A meet-point instruction ("cut tier P2 until it meets P1 and G1 at a single point") specifies a facet's depth implicitly; the solver in crates/pleochroma/src/geometry/meet_solver resolves that depth by intersecting the facet plane with its neighbours' already-known vertices, walking the schedule in dependency order so that changing one tier's angle recomputes every tier that depends on it. Where a design has no .asc file to anchor against, the solver can instead anchor a block against the design's own printed C/W/P/W proportions (meet_solver/anchors.rs).

Solving runs on a background solve service (one persistent worker thread with last-wins request coalescing and real mid-solve cancellation) once a design is large enough that solving stops being instantaneous; the Solve/Deep Solve/Optimize buttons relabel to a running state with an Abandon/Cancel action, and a status-strip activity list shows every long-running operation — background solve, Deep Solve, Optimize, Retarget, a tilt curve or video export — with elapsed time and, where the operation can measure one, a progress fraction. Editing the design while a solve is in flight discards the stale result rather than applying it over a newer edit, and every analysis result the editor keeps on screen (Retarget's proposal, a tier's manufacturability warnings, the tilt curve cache) carries a stale badge the instant an edit invalidates it, cleared only by re-running that analysis.

A pavilion tier's row shows a color-coded critical-angle margin bar next to its angle field, live as you type, and the first time (per session) a design has no anchor tier, a one-time explainer card walks through why the solver needs one before you hit the "no anchor" status message cold. New designs start from an empty-state card offering the New Design dialog's template gallery or an in-app guided worked example. New Design always opens a design: even the Empty template leaves a zero-tier design with its preform in the viewport, a "no tiers yet" hint and an + Add Tier button. The worked example (Help → Guide: New Design Walkthrough) walks you through building a simple round-brilliant-style stone yourself, tier by tier — it does not build the stone for you. Each step lists its actions as numbered lines with the exact values to type, outlines the control it is about, and moves on by itself once its goal is reached — the tier exists with the right name, angle and indices, the material is applied, the design solves to a closed stone — whichever route got there (the tier form, a quick-add button, an inline edit, Undo/Redo, or auto-solve); a status chip reads "Waiting for: …" until then. Skip Step moves on without the goal, Back returns to the previous step, and the two reading steps wait for Next. Controls the current step does not use are locked — dimmed, with a tooltip saying so, keyboard shortcuts included — until the guide is closed. The guide panel sits beside the tier table on a wide Edit layout and floats at the window's right edge everywhere else, where it can be dragged out of the way; either way it collapses to a small "Guide · Step N of M" pill (apps/pleochroma-cut/docs/manual/07-new-design-worked-example.md). A full keyboard-shortcut overlay is one press of ? away (or Help → Keyboard Shortcuts) whenever no text field has focus.

The tier form

The inspector's Tier tab edits one tier at a time. Number fields take a plain number or a small calculation: 41.5+0.3 and (90-41)/2 are worked out by the app. The same holds for the exact scale value, the cheater offset, the preform fields, the girdle diameter, the specific gravity override, the gear reference angle, the symmetry order and the Offset box for a group of tiers. Text in the Angle field that starts with = is not worked out once but kept as a relation (section 6).

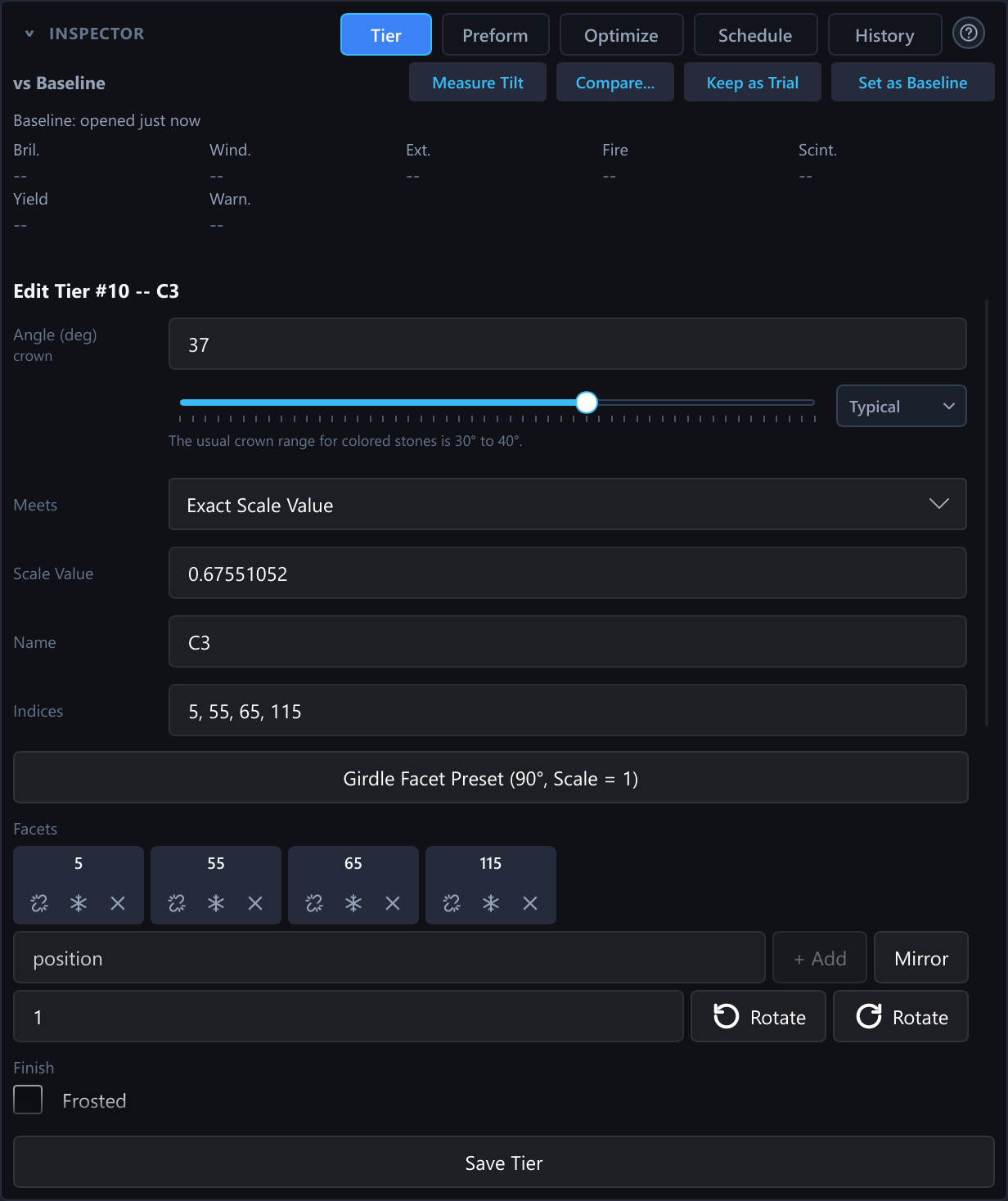

The Tier tab of the inspector editing tier C3: angle with slider and Typical menu, Meets, name, indices, facet chips and the Save Tier button
Fig. 13 — The Tier tab of the inspector editing tier C3 of 41.029B FVS-65: the angle (37) with its slider and Typical menu, Meets set to Exact Scale Value with its scale value, the name, the indices, the Girdle Facet Preset button, a chip for each facet, the position box with Add, Mirror and Rotate, the Finish box (Frosted), and Save Tier at the bottom.

The Indices field takes values from 0 up to and including the gear's tooth count, because the index wheel is a ring. On a 96-tooth gear, 96 is allowed and names the same position as 0; the app keeps the number as you typed it. A value outside the range is refused with a message that names the range, and so is the same position listed twice. Two shorthands save typing: 0:12:96 counts from 0 in steps of 12 and stops before 96, and 12 x8 spreads eight evenly spaced copies around the wheel. A refusal appears directly under the field it is about, and that field gets a red border.

A pavilion or crown tier also has an angle slider and a Typical menu. The slider runs from 30° to 55° for a pavilion and from 15° to 55° for a crown, snaps to 0.05° (0.01° while Shift is held), and on a pavilion marks a green band from 1° to 6° above the stone's critical angle. The menu lists common angles with a one-line reason each: for a pavilion the standard angle for the material, the critical angle plus 2° and plus 4°; for a crown the standard angle and 25°, 32° and 40° for a low, medium and high crown. Neither control saves anything: Save Tier commits the tier as one undoable edit. The preform proportions have sliders with the same rule, and Apply Preform applies them.

Below the form, a row of chips detaches or removes single facets of a tier, a position box adds one, and Mirror and Rotate (Advanced) reflect or turn all of the tier's indices around the wheel. A tier's angle can also be edited in place in the tier table (double-click or F2) and nudged with the arrow keys. The arrows follow what the table shows: a pavilion angle is printed without its minus sign, so Up makes the shown number bigger. A burst of nudges is one undo step. Ctrl+D duplicates a tier, Alt+Up and Alt+Down reorder it, and Ctrl+click or Shift+click select several tiers for one batched nudge. The Select button above the table shows a check box on each row instead. With two or more tiers selected, a bar above the table shows N selected, Clear, Delete and an Offset box: type the degrees (a calculation works) and press Enter or Offset, and every selected tier's angle moves by that amount as one undo step. You do not have to click a row first.

Frosted facets

A tier can be cut frosted: a matte, light-scattering finish instead of a polished one. In the Tier tab the Finish row has a Frosted check box that frosts every facet of the tier at once, as one undo step. In Advanced mode each facet chip also has a frost button for frosting single facets, and a note says that some facets of the tier are frosted. The tier table marks a frosted tier with a frost icon. A concave tier has no frosting setting. The Frosted Girdle switch on the Stone tab, which draws the girdle band matte, is a separate setting.

The frosting is part of the design. It is saved in the .psdd file, and a design with no frosting is written exactly as before. Gem Cut Studio .gcs files carry it both ways: a frosted tier or facet in an imported file stays frosted, and Export as Gem Cut Studio writes it back. An .asc file has no field for it, so exporting one writes the geometry and a dialog titled Frosting Is Not Part of This Format says so. The cutting sheet marks the tier (Frosted), or lists the frosted facets. The library keeps the frosting of each design, so its traced previews show the stone frosted.

The live render, the Compare window, exports, render jobs and remote workers all draw a frosted facet matte, and the tilt curves follow it (section 4). The live readouts, the optimizer, the angle sweep and the Compare figures still treat every facet as polished, so a frosted design’s tilt curves and those numbers can differ on purpose.

Templates

The New Design dialog is a gallery of nine templates and a blank design. The five everyday shapes are a round brilliant, an oval, a cushion, an emerald step cut and a princess cut. The other four are a shallow and a deep round brilliant and two teaching designs. You pick the material, the index gear and the stone's width in millimetres, and the stone is built on its own rough and solved, so a closed stone is on screen at once. Each template is checked to close on every gear the dialog offers for it (crates/pleochroma-cut-core/src/templates.rs). If the material's refractive index differs from the one the template was designed for by more than 0.02, the pavilion angles are first adapted with the Retarget Shift method below. The adapted stone is kept only if it passes Retarget's validity check; otherwise the template's own angles stay and a warning says why.

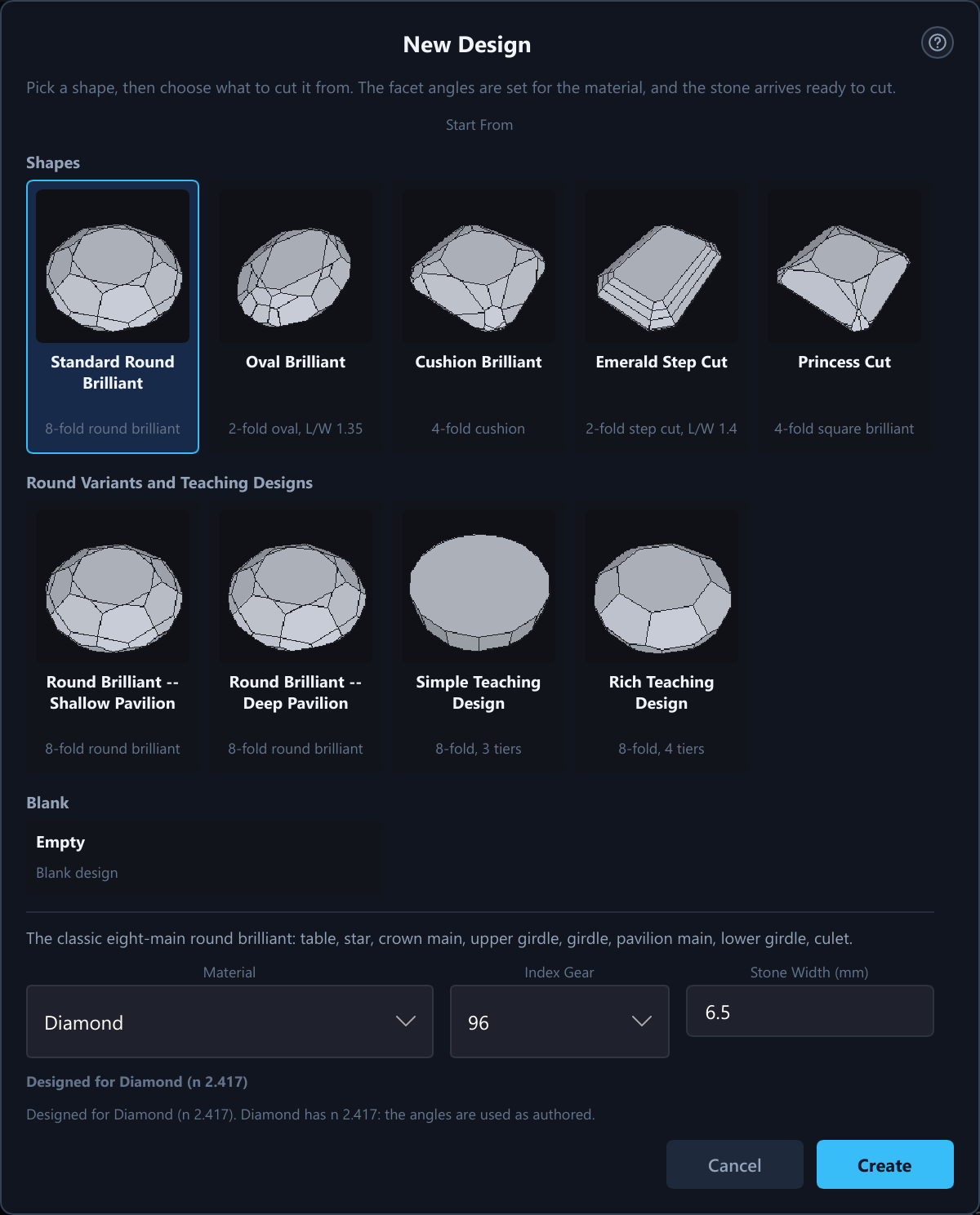

The New Design dialog: a gallery of shapes, round variants and teaching designs, and a blank design, with material, index gear and stone width
Fig. 14 — The New Design dialog: five everyday shapes (Standard Round Brilliant selected), the round variants and teaching designs, the Empty design, and below them the Material (Diamond), the Index Gear (96) and the Stone Width in millimetres (6.5), with Cancel and Create.

The overall verdict

A badge in the status strip sums the design up in one word: Good, Check or Problem. Click it for the reasons, worst first. Each reason has a Show button that selects the tier it is about and, where a safe tool exists, a Fix button. The fixes are: snap an index to the nearest gear tooth; remove facets that a later tier cuts away; move a tier to just after the last tier it meets; steepen a pavilion facet to the critical angle plus 2°, turned about its girdle corners so the girdle outline stays; and add a flat table. A fix is planned on a copy of the design, refused with a plain sentence when it cannot be made safely, and is one undo step. The badge is recomputed after each solve and stays dimmed after an edit until the next one.

Besides the structural checks, the verdict uses three quick table-up figures in the design's material: windowing above 15 % is a Check and above 30 % a Problem, extinction above 40 % and 60 %, brilliance below 25 % and 10 %. The windowing limits are the ones to trust most. The other two are loose starting points, kept as named constants in crates/pleochroma-editor/src/verdict.rs.

Editing the instructions as text

Edit → Edit as Text... shows the open design's cutting instructions as .asc text with freshly solved masts, and lets you change them. A live check names the line of any problem, and before you apply, the dialog lists what Apply would change and what it would lose. Apply is one undo step. The text carries no tier ids, so tiers are matched by name, then by angle and indices; a tier that stays keeps its note, cheater offset, depth target and relation. The text leaves out what an .asc cannot hold: notes, cheater offsets, targets, relations, concave tiers, the preform, the material and the girdle size. Apply never changes the preform, the material or the concave tiers. The dialog can lay the text against the saved file or the Baseline, line by line, with added and removed lines marked. While a design has concave tiers, the gear cannot be changed in the text, because the tool placements follow the gear.

Retarget for another material

Retarget... (see the figures below) proposes new crown and pavilion angles for another material and shows every change before anything is applied. The target is a built-in material, a custom one or a typed refractive index. Shift keeps each pavilion tier's margin over the critical angle; it is instant and always gives the same answer. Optimize starts from the Shift result and, when you press Search, looks for a better stone in the target material. It may move every crown and pavilion angle by up to 3°, 6°, 10° or 15° from its Shift angle, tries 100, 300 or 800 trial stones (Quick, Normal or Thorough), and offers up to three valid options, scored under the Grading tray whatever lighting the viewport shows. An option can carry a label for what it is best at: Best optics within limits, Closest to original or Balanced. The Crown Handling control (Advanced) says how the crown follows the pavilion. By default Crown Follows the Pavilion: a steeper or shallower pavilion makes the stone deeper or shallower, and every crown angle is scaled by the same vertical stretch, so the stone keeps its silhouette (crown height against pavilion depth) and its table size. Switch that off to use a Fraction of Shift slider instead (0 % leaves the crown alone), or tick Scale Crown by Ratio Instead to scale every crown angle by the ratio of the two critical angles, which wins over the other two.

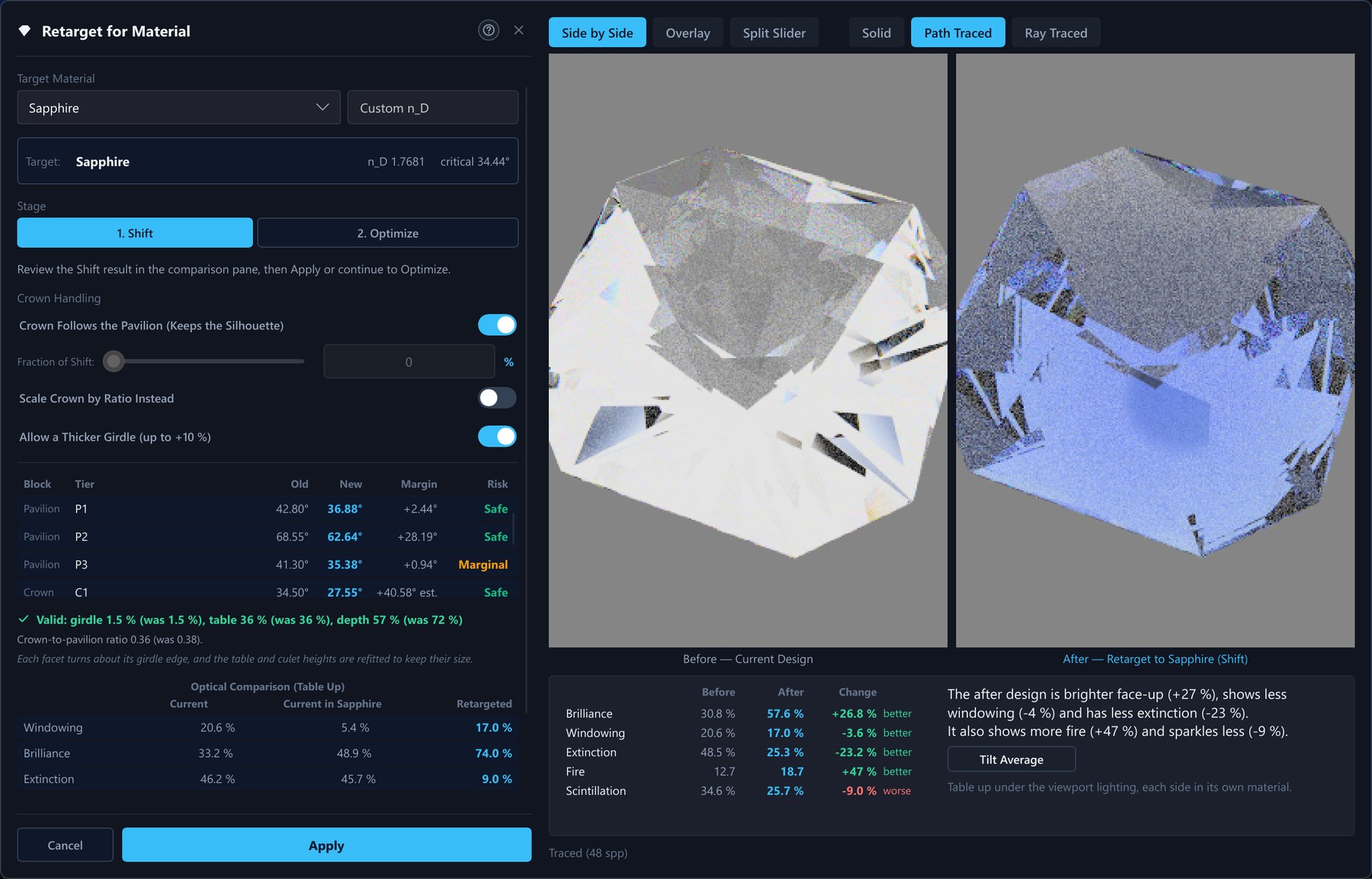

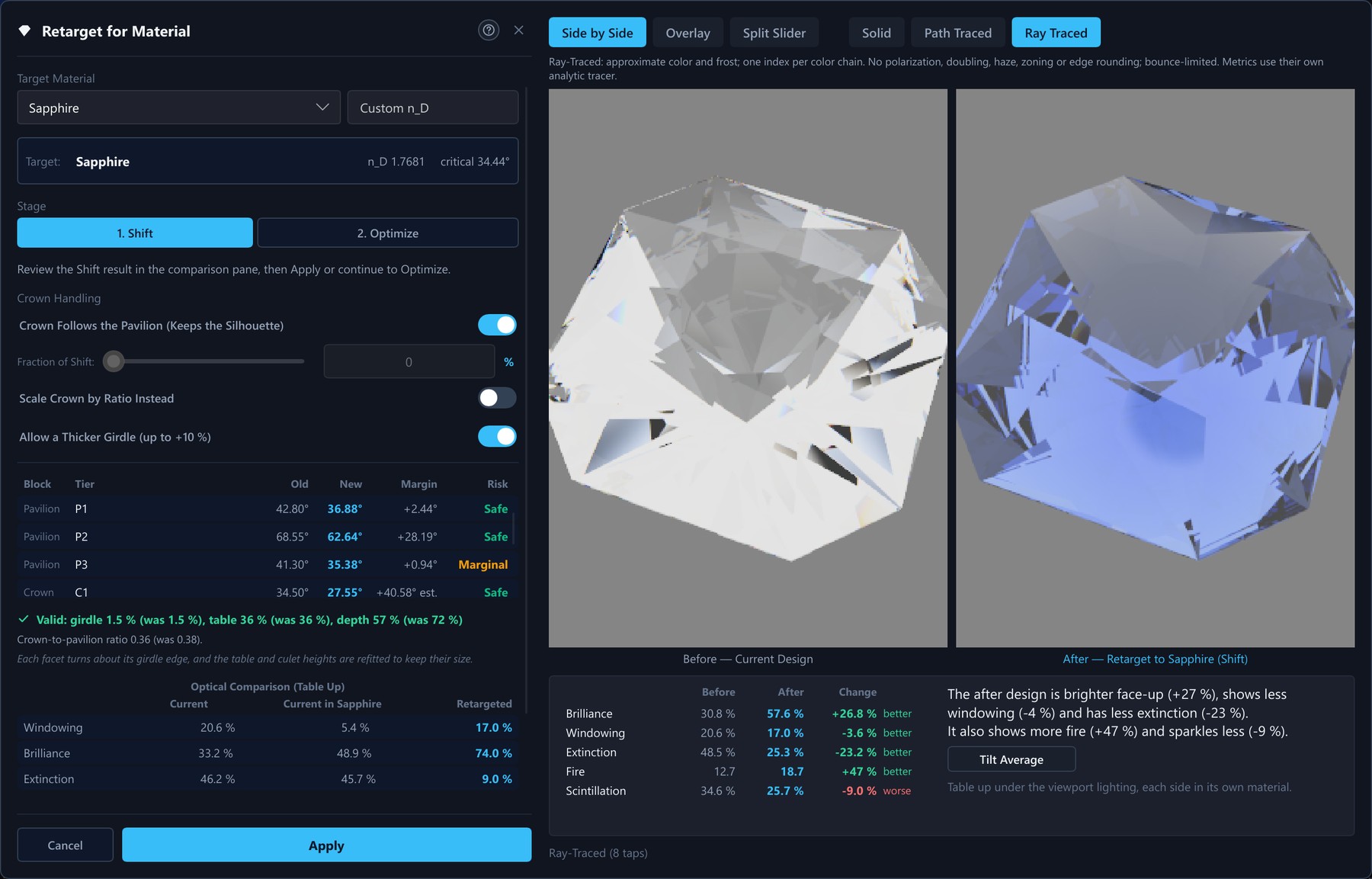

Retarget for Material dialog, the Astryx Star design retargeted to Sapphire in Shift mode, before and after side by side
Fig. 15 — Retarget for Material: the Astryx Star design retargeted to Sapphire (n_D 1.7681, critical angle 34.44°) in Shift mode (Stage 1. Shift, with 2. Optimize beside it). On the left the crown handling options, each tier’s old and new angle with its margin and a Safe or Marginal verdict (P1 from 42.80° to 36.88°), the Valid line (girdle 1.5 %, table 36 %, depth 57 %, was 72 %) and the optical comparison; on the right the stone before and after, side by side and path traced (48 spp), with the Solid, Path Traced and Ray Traced switch above the pictures and a table of brilliance, windowing, extinction, fire and scintillation below them.

Keep the Design's Look (Advanced, on by default) scores every option, and the Shift start it is compared with, with a penalty for drifting from the design's table size and its crown-to-pavilion ratio, so the search prefers options that look like your stone; the verdict quotes the depth and the ratio next to the old ones. Switched off, options are ranked by the optical score and the yield alone. The search never lets a pavilion angle fall below the target's critical angle plus the margin the design has now (at most 2°), so brilliance cannot be bought with a window.

The table, the culet and the girdle never move. The table and culet are listed greyed as Not changed, and the girdle is not listed. A moved angle keeps its sign and stays between 1° and 89.5°. Each facet turns about its girdle corners, so the girdle keeps its outline, and the table and culet heights are refitted so they keep their size. A tier whose angle follows a relation is not changed on its own; it follows the tiers it reads.

One exception keeps a change valid: Allow a Thicker Girdle (up to +10 %), on by default in Advanced mode. When the new angles would pinch the girdle at its corners, Retarget thickens the girdle band by 5 % and then by 10 % (never thinner) before giving up. Only the thickness changes: the plan view, the table and culet size and the crown-to-pavilion ratio are kept, the total depth grows by the girdle change, and the result text says which step was used.

Every result is checked against the original stone before Apply is allowed. The dialog says Valid, with the girdle, thinnest-point and table figures, or Not valid with the reasons: the facets no longer close; a meet of the original stone would split, or one of its facets or edges would disappear (section 8); the girdle disappears or becomes less than half as thick, overall or at its thinnest point (the corners of a faceted girdle); the table falls below the top of the girdle or the culet rises above its bottom; a tier loses facets; facets become too small to cut; or a relation can no longer hold. When the plain Shift is not valid, the dialog says so and points to Optimize. Compare... keeps working on a change that is not valid, so you can see what goes wrong. If the original design itself does not solve, nothing can be compared, the dialog says so, and Apply stays off. Apply is one undo step that covers the angles, the heights and the material, and it commits the stone that was checked.

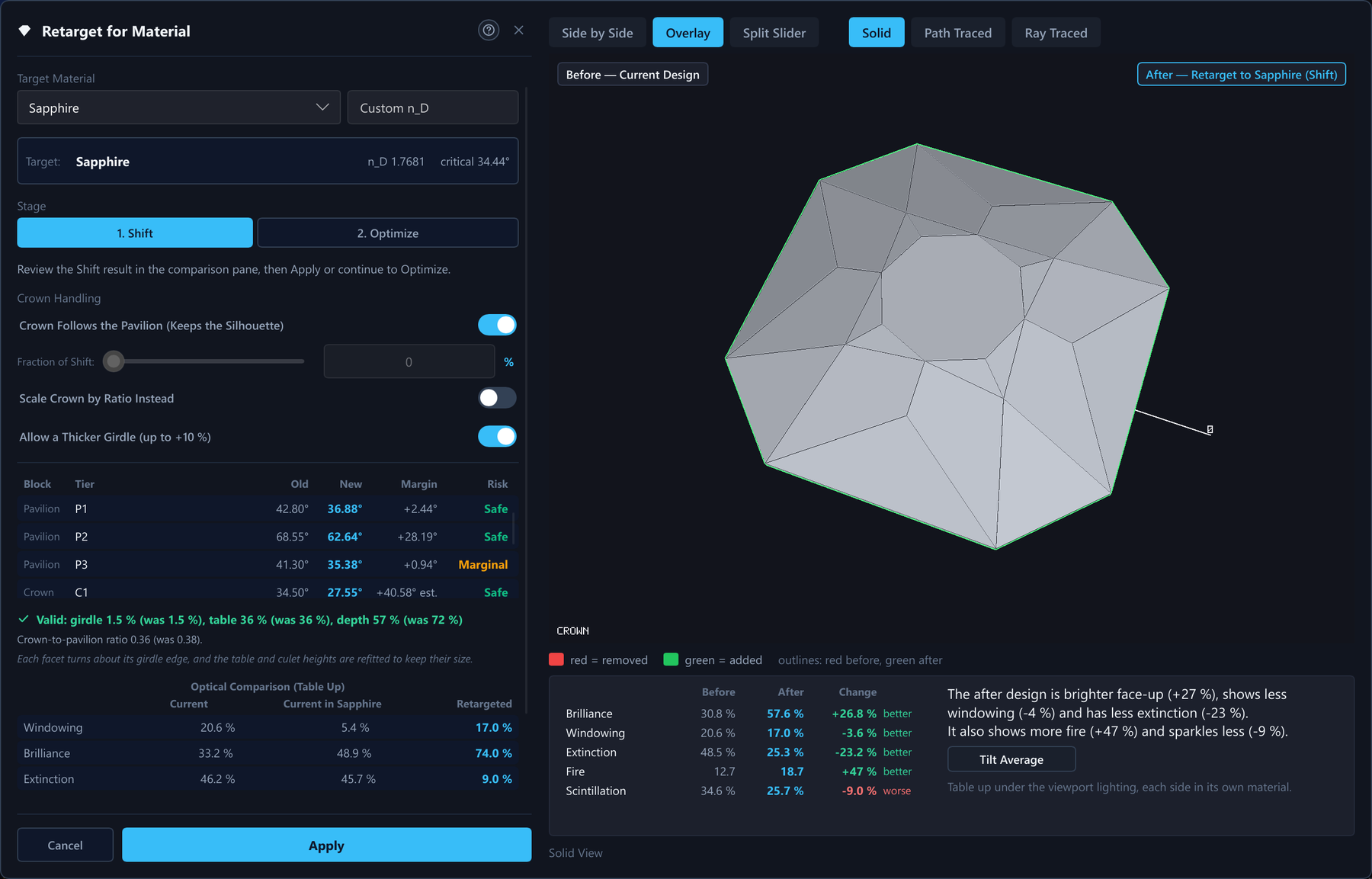

Retarget for Material dialog with the Overlay view: red outline before, green outline after
Fig. 16 — The same retarget in the Overlay view, solid: the stone before and after drawn on top of each other, red for the outline before and green for the outline after, with the legend under the picture.

The Risk column depends on the block. A pavilion row shows its margin over the target material's critical angle: Safe at 2° or more, Marginal from 0° to 2°, Windows below 0°. A crown row shows an estimate, marked est., of the same margin for light entering through that crown facet, read against the retargeted main pavilion angle. It follows a single ray, so read it as a guide. The table and culet rows have no margin. A small table also compares three stones on windowing, brilliance and extinction: the current design in its own material, the same design in the target material, and the retargeted design.

Changing the index gear

The Index Gear list in the Design settings panel changes the wheel a design is cut on, for example from 96 to 64 teeth. Pick the gear and press Apply Gear; the button carries an asterisk while a change is waiting. Nothing changes yet: a Confirm Index Remap dialog lists every tier with its old and new indices. Each position is carried over in proportion to the new tooth count. A position that does not land on a whole tooth of the new gear is rounded, and its row is shown in red, so look at those rows before you confirm. In Advanced mode a Rounding list chooses how: Nearest (the usual), Floor or Ceil, so a position you placed on a half tooth does not move the other way. Confirm Remap applies the change and Cancel keeps the old gear. The angles and the meet constraints are not touched, and concave tiers move with the gear.

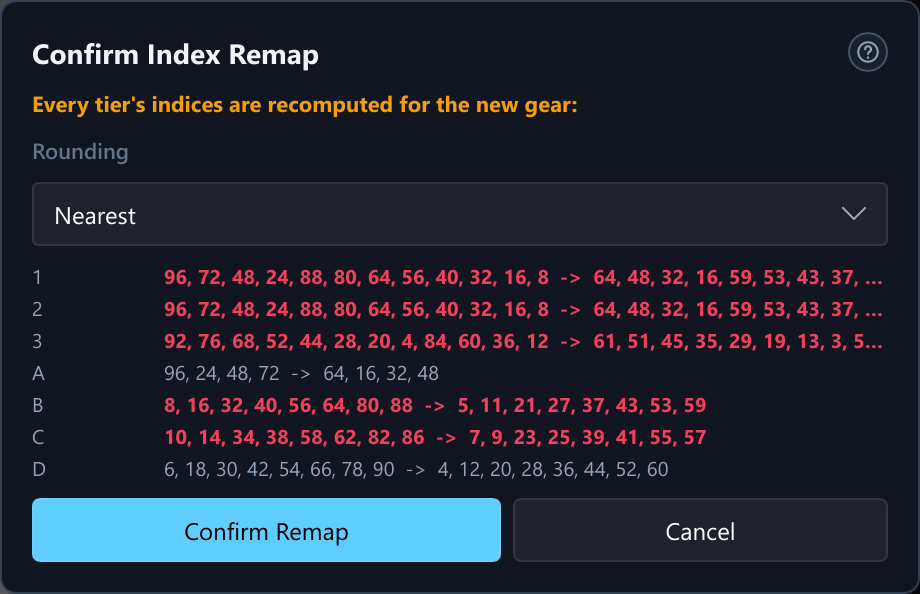

Confirm Index Remap dialog listing each tier's old and new indices
Fig. 17 — The Confirm Index Remap dialog after picking 64 teeth for a 96-tooth design: the Rounding list (Nearest), one row per tier with its old and new indices, the rows that changed in red, and Confirm Remap and Cancel.

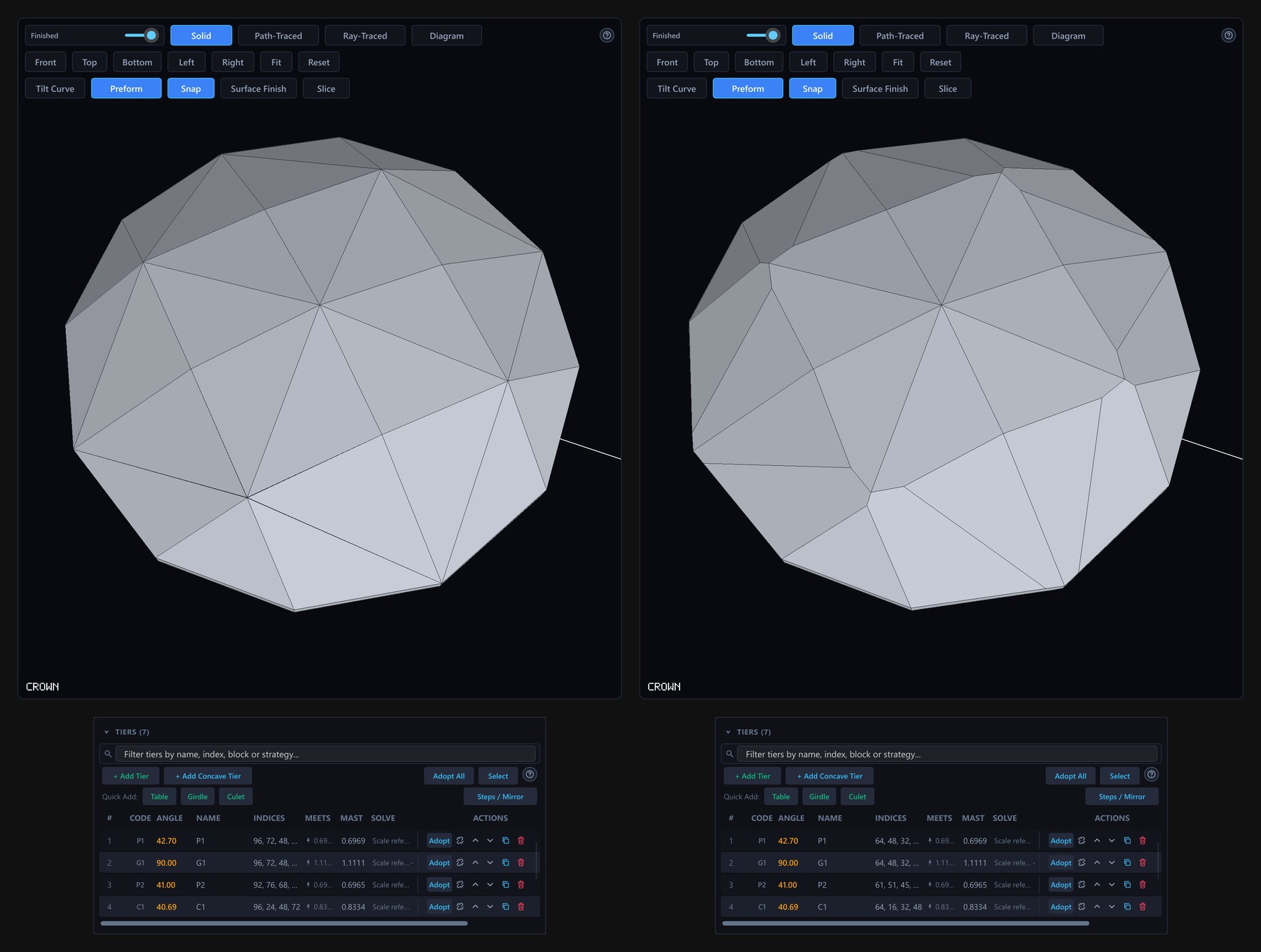

The 45.148 SplitChecker 12 design before (96 teeth, left) and after (64 teeth, right) a gear change, with the solid view and the Tiers panel of each side by side
Fig. 18 — A gear change from 96 to 64 teeth on 45.148 SplitChecker 12, before (left) and after (right): the solid view above and the Tiers panel (7 tiers) below, with the facet pattern of the stone different after the change.

6Parametric relations

A relation makes one tier's angle follow other tiers' angles instead of being a number of its own. If P2 follows P1 with the relation P1 - 2, P2 is always two degrees shallower than P1: change P1 and P2 moves with it, in the same undo step. Relations suit things that should stay in step, such as a ladder of step cuts, a main that sits a fixed number of degrees from its break, or a facet halfway between two others.

To make one, start the Angle field of the Tier tab with =, write what the angle should follow, and press Enter or Save Tier.

You typeThe angle becomes
=C1-44° less than tier C1
=(P1+P3)/2halfway between P1 and P3
=P1*0.5half of P1
=[Crown Main]-22° less than the tier called “Crown Main”

A tier's name stands for its angle from the girdle plane, always as a positive number, so a pavilion tier at −41° counts as 41. The tier you are editing keeps its own side. Names are matched exactly first, then ignoring capitals, and a name with a space goes in square brackets. You can use numbers, + - * / and round brackets. Text that does not start with = is never a relation: 41.5+0.3 is worked out once and the tier gets the number 41.8.

A tier with a relation is marked in three places. The Angle field shows the relation, a note under it reads “Follows a relation” with the angle it works out to and a Remove Relation button, and the tier table shows a link icon in the angle cell. Removing the relation keeps the angle the tier has at that moment. Setting, changing and removing a relation are each one undo step, and the Undo button says which (“Undo: Set P2 = P1 - 2”).

The app refuses a relation, and changes nothing, in these cases:

A follower has no angle of its own to edit. Double-click, F2, the Ctrl+scroll step and the group Offset box leave it alone and show a hint, and in the Solid view its angle handle is hidden. Nudging or dragging the tier it follows moves the whole chain in one undo step. Removing a tier that others follow is allowed: the followers keep their angle and stop following, and one Undo brings back the tier and the relation together. The Steps / Mirror panel can generate a ladder of step cuts with Keep Linked ticked, so that each tier after the first follows the first (Step1 + 2, Step1 + 4 and so on).

The other engines respect relations. The optimizer never moves a follower on its own: every candidate is scored with the relations worked out, and applying one moves the followers too. Retarget does the same and refuses a change that would break a relation. An angle sweep cannot sweep a follower, but the followers of the swept tier move at every angle. A variant brings its own relations with its angles, and Edit as Text keeps the relation of a tier that stays.

Relations are saved with the design, written against the tiers' stable ids, so renaming a tier never breaks one. The design file version becomes 3 only when a design has at least one relation. A design without relations keeps the version it had (1, or 2 with concave tiers), and its file is what an older build would have written. An older build refuses a version 3 file instead of opening it and dropping the relations on the next save. An .asc file has no way to say “follows”, so exporting one writes each tier's current angle as a plain number.

7Concave tiers

Most facets are flat: a lap grinds one plane and the stone stays convex. A concave tier is cut with a shaped tool instead and leaves a groove, a bowl or a dimple. The tool is a cylinder (CYL), a cone (CON), a circle (CIR), a disc (DSC) or a sphere (SPH). The engine resolves each tool placement to a convex volume that is subtracted from the flat stone (crates/pleochroma/src/geometry/tool.rs), up to 128 placements in one stone. A design with no concave tiers behaves, prints and saves exactly as before.

A concave tier follows the standard notation for fantasy and concave cuts and is written on two lines. Line 1 is the facet: the tier's name, its angle φ off the girdle plane, the index-wheel positions and your free-text instructions. Line 2 is the tool: its code, its azimuth θ, its displacement X, Y and Z as ratios of the stone width, D/W (the tool's diameter over the stone width), for a cone or disc the included angle, and then reciprocating or plunge. The two lines share one shaded band on the cutting sheet, in the Schedule tab and in the catalogue's cutting table.

+ Add Concave Tier in the tier table opens the concave form in the Tier tab, with fields for name, angle, indices, instructions, tool, θ, X, Y, Z, D/W, tool angle and reciprocating. A field that cannot be used is outlined in red and named in the message under the form. Concave rows come after the flat ones in the tier table. Their MEETS column shows a Tool badge, their mast and margin read - and their SOLVE column reads Tool cut, because a concave tier has no mast of its own. Their angle is edited in the inspector. Move, Duplicate and Delete work, and a concave tier moves only among the concave rows, because their order is their cutting order within a section.

The order matters. Concave tiers are cut after the flat faceting of their section: at the end of the pavilion and girdle section, and at the end of the crown, directly above the table. The Cut slider (section 12) and cutting mode (section 10) follow this order, so every step looks like a real stage of the work. Hover and click name the facet that is drawn under the pointer, also in a design with concave tiers.

A sixth manufacturability check runs only on designs with concave tiers; the five flat checks are unchanged. It reports (crates/pleochroma-cut-core/src/manufacturability/warning.rs):

The solid view, the diagram and the render show the stone with every tool's cut removed, and the tool facets have their own ids, so hover names them. The path tracer runs such a stone on the GPU as well as on the CPU, up to the 128 tool placements a design can hold. A remote worker receives the tools with the scene and traces the same stone, so local, remote and combined renders agree. Brilliance, windowing, extinction, scintillation and fire, the tilt curves and the tilt hover preview are computed on the stone with its tools. A design whose tiers do not resolve to tools (a tier that fails validation, or more placements than the limit) is drawn as its flat stone alone, and the tier table's warning badge says why.

The native .psdd file keeps concave tiers exactly (design file version 2 or later). An .asc file keeps two footnotes per tier in cutting order and never writes a concave tier as an .asc tier. A .gcs export keeps the same footnotes in its footer fields. Export Edited .asc and Export as Gem Cut Studio tell you before writing that concave tiers cannot be written to the format, and ask for confirmation.

Other tools treat concave tiers as follows. The Rough planner takes the volume, the carat weight and the yield from the carved stone, draws the cuts and places the stone on its carved outline (section 11). The optimizer, Retarget and the angle sweep score the stone with its tools: their optical figures and the sweep's tilt averages are measured on the carved stone, and the yield reads the carved volume, so a groove or a dimple costs yield. The Compare window draws, traces and measures the stone with its tools (a concave side may trace at a lower sample count when it is slow); the History pictures draw it with its tools too, and so do the library previews, the batch tilt curves and the library detail view. Cutting mode shows a Tool line on a concave step. Two tutorials teach concave tiers: one for the cylinder and cone, one for the sphere, disc and plunge.

Clicking a groove or dimple in the solid view or the diagram selects its concave tier, and selecting a concave row tints all of its tool facets. Limits today: every tool placement is sized from the finished flat stone's width W (the same W as the sheet's L/W), so concave edits never change the stone's width, length or height; and a design holds at most 128 tool placements.

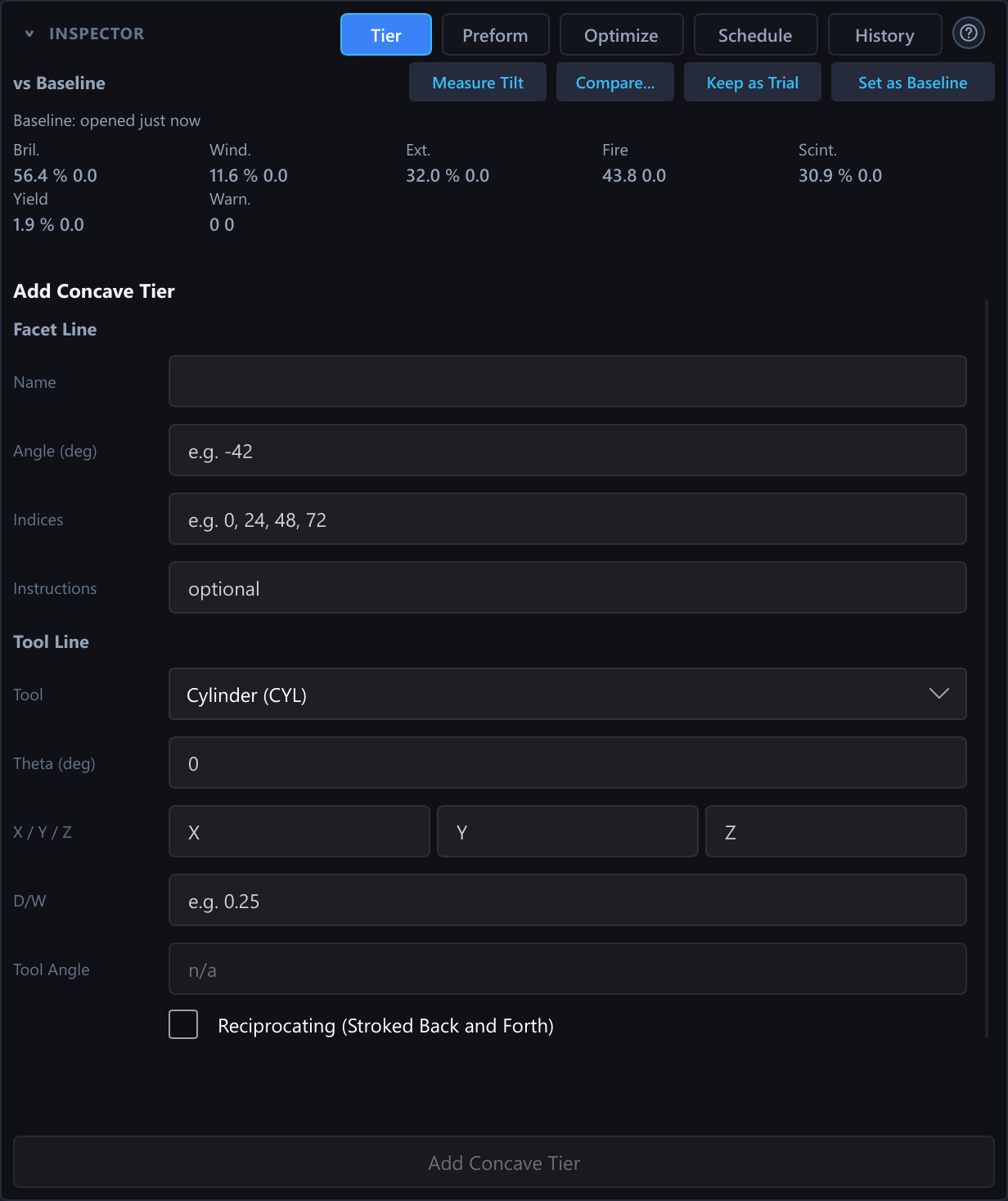

The Tier tab in Add Concave Tier mode: the facet fields, the tool choice with its theta, X, Y, Z, D/W and tool angle, and Reciprocating
Fig. 19 — The Tier tab in Add Concave Tier mode: the Facet Line (name, angle, indices, instructions) and the Tool Line (Cylinder (CYL) here, with its theta, X, Y and Z, D/W and tool angle, and the Reciprocating box), then Add Concave Tier.

8Preforms, the optimizer and angle sweeps

pleochroma-cut-core's preform module models the rough gem material as a rectangular block or a round/oval cylinder. Its yield_metrics module reports volumetric yield, an estimated carat weight from the material's specific gravity, and flags a design whose facets cut outside the stated rough. In the inspector's Preform tab, the half-width (1 to 3), the length/width (1 to 2.5), the depth (1 to 3.5) and the girdle Y-offset (plus and minus half the depth, in millimetres, once a girdle diameter is set) each have a slider. A slider only fills its field; nothing changes in the design until you click Apply Preform.

Manufacturability checks (manufacturability/) run on each solve. They report vanishing facets that fail to form a real face and facets too small to cut reliably; these two need a closed solid. They also report an index that does not land on a gear tooth, a meet that names a tier cut later, and a meet name that would not survive an .asc round trip. The warnings go stale at the next edit and come back at the next solve. Designs with concave tiers get a sixth check (section 7).

A tier's constraint can also be authored as a real-world target rather than a dimensionless mast: cut to a stated depth in millimetres, or bisect the tier's mast until the design's measured girdle thickness or table width lands on a stated millimetre figure (TierTarget::DepthMm/GirdleThicknessMm/ TableWidthMm, pleochroma-cut-core/src/design/targets.rs). Every tier also keeps a stable id (tier_id) that survives reordering, duplication, and a save/reopen round trip through the native .psdd design file, so a manufacturability warning or an authored target keeps pointing at the same tier across edits rather than a table row position.

The optimizer

The Optimize tab runs a coordinate search over the angles of the tiers it may move, followed by a deterministic simplex pass (Polish) that can follow a ridge where two angles must move together. It looks for a few different good designs, ranks them and shows each next to the design you started with. Nothing changes until you click Apply.

Every candidate keeps the stone’s meets. Before it searches, the optimizer records the stone’s facet network: each meet (a point where three or more facets come together) and the edges and faces between them. A proposed angle is then corrected so that no meet splits into several points, no facet or edge disappears, and the girdle’s outline and height stay as they are. A proposal that cannot be corrected is dropped before its optics are scored. Retarget (section 5) works the same way, with tighter limits on how far the shape may drift. For Retarget the limits on the stone's depth, the girdle height and the movement of the meets grow with how far the change turns the facets, so a large step between distant materials is not refused for that alone; the meets, the girdle thickness, the table and the aspect are not relaxed. The line above the candidate list reports how many original meets were preserved. A design imported from an older GemCad file, whose depths are written with five decimals, has meets that already miss by a few millionths of the stone; the check recognises them as meets, records that miss and asks no candidate to close it, so such designs are optimized and retargeted like any other. A design with concave tiers is handled the same way: the check covers its flat facets, no run edits a tool, and the optical figures and the yield are measured on the stone with its tools.

A coordinate search walks downhill and can settle in a good but not the best arrangement, so the desktop optimizer tries several starting points. It first screens a spread of trial arrangements, keeps the best ones that differ clearly from each other and runs the search from each, sharing the budget between them. Your own design is always the first start, so the result is never worse than a single search from it. The starts run side by side on the processor cores, and the answer does not depend on how many cores there are. The status line shows the start in progress and the best score so far, and the result names the start that won. With Starts at 1 the search is the plain single descent; the web app always runs one start. By default the search scores under the Grading tray, the evenly lit hemisphere with a head shadow, so brilliance counts every lit direction; under a Studio rig, brilliance is measured against that rig's own lamps and a small note says so.

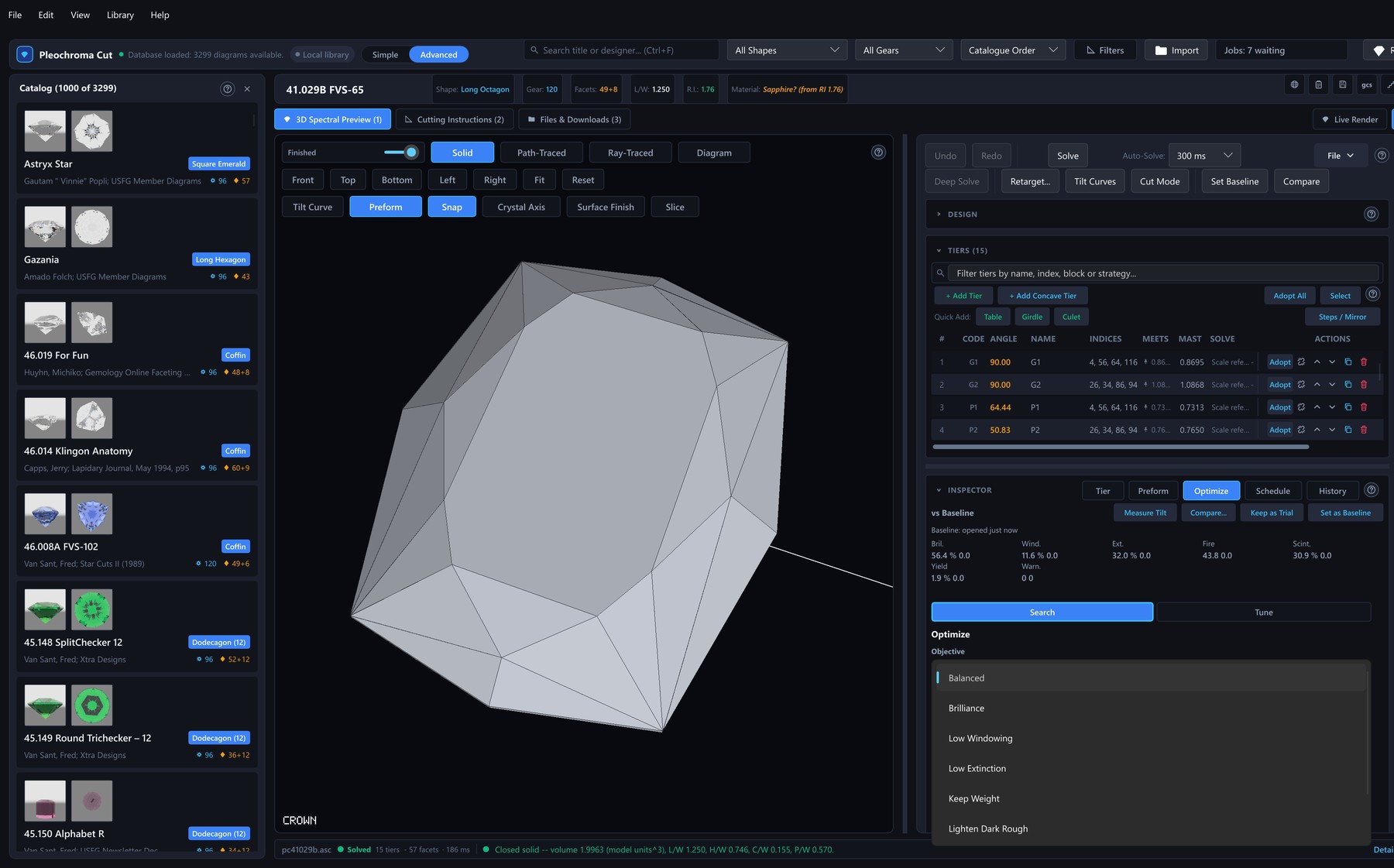

The editor with the Objective list of the Optimize tab open under the tier table
Fig. 20 — The Optimize tab’s Objective list (with the Search and Tune choice above it) open under the tier table of 41.029B FVS-65: Balanced, Brilliance, Low Windowing, Low Extinction, Keep Weight and Lighten Dark Rough (the list scrolls).

The candidate list starts with a Start row, the design as it is. Each candidate shows its score (lower is better), windowing, brilliance, extinction, yield and how many tiers it changes. A figure is green when it beats the start and red when it is worse, and each candidate differs from the others by at least half a degree on some tier. Picking a row shows that candidate as a ghost in the viewport without touching the design. Apply commits it as one undo step, including the followers of any tier it moves, and is refused when the design has changed since the run.

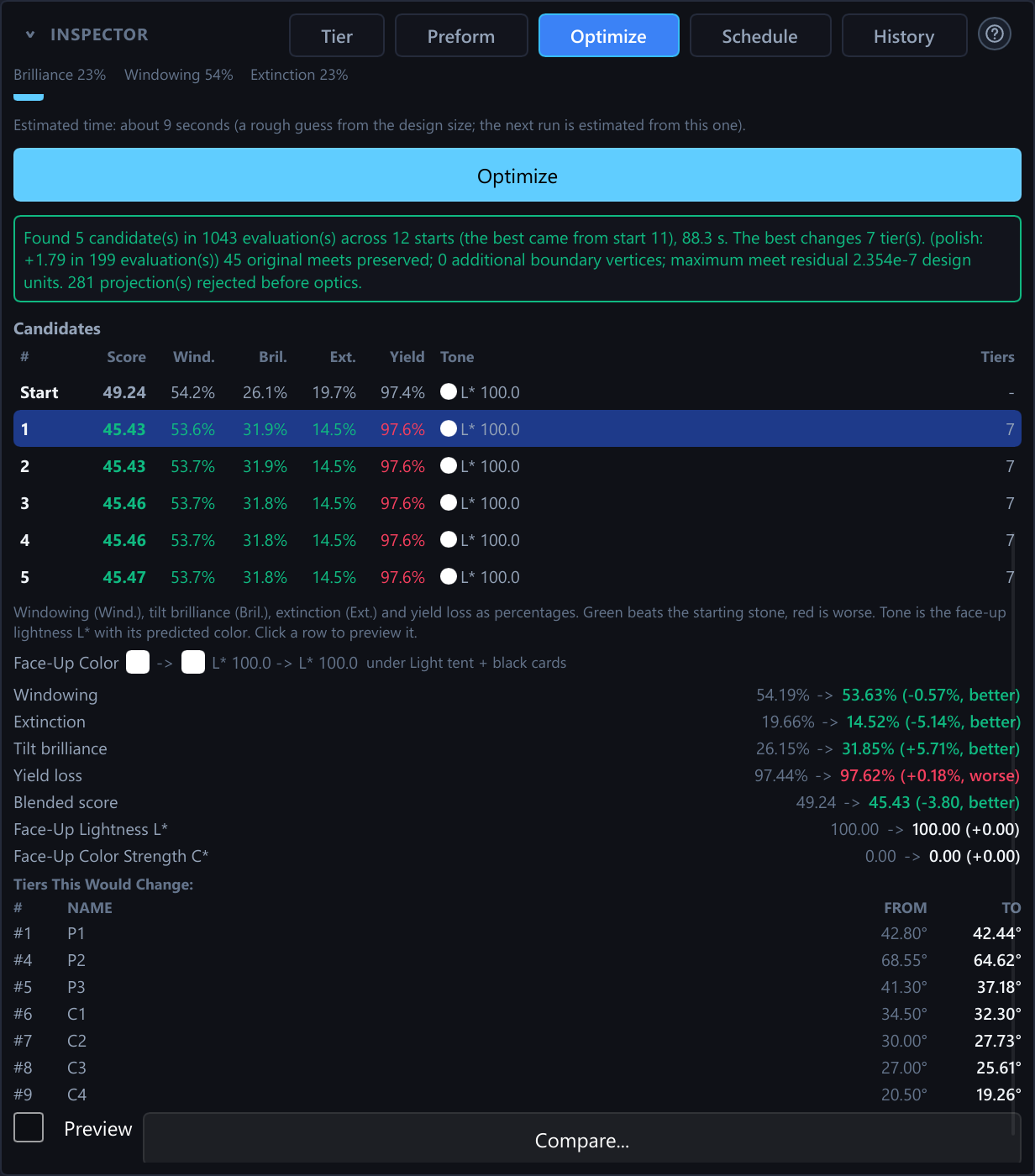

The Optimize tab after a run: the candidate list, the before and after figures of candidate 1 and the tiers it would change
Fig. 21 — The Optimize tab after a run on the Astryx Star design, scrolled to the results: the starting stone and five candidates (green beats the start, red is worse), candidate 1 selected with its before and after figures (tilt brilliance 25.87 % to 31.30 %, windowing 54.49 % to 54.01 %, extinction 19.64 % to 14.69 %, yield loss 97.44 % to 97.63 %, blended score 49.42 to 45.80), the tiers it would change with their old and new angles (P1 42.80° to 42.64°, down to C4 20.50° to 19.92°), and Preview and Compare.

Tune

The Optimize tab has two pills, Search | Tune. Search is the automatic optimizer above. Tune is its hand-driven partner: it lists the tiers in the order a cutter works, the pavilion main first, then the crown main, then the rest, and keeps the Baseline strip's figures in front of you while you move each angle. Pick a tier, nudge its angle by −0.5, −0.1, +0.1 or +0.5 degrees or type one (each is one undo step), and watch which figures change beyond their noise threshold. Accept keeps the design as a trial and ticks the tier, Revert This Tier puts the tier back to its Baseline angle, and Next Tier moves on. In the Advanced interface a small chart sweeps the selected tier about two degrees either side of its angle, marks the current angle and the best one, shades the plateau and sets an angle when clicked; Jump to Best goes to the best one, and Pair With... opens the two-tier sweep for the tier and a partner.

Angle sweeps

Edit → Angle Sweep... tries one tier's angle over a range and shows how the stone's figures change. You choose the tier, a From angle, a To angle and a Step; the fields take arithmetic. A sweep tries at most 200 angles, and the design's own angle is always one of them, marked Current. Every angle is tried on a private copy of the design, so a sweep never changes the design while it runs. The table lists brilliance, windowing, extinction, fire, scintillation and yield for each angle, scored table-up in the design's material under the Grading tray lighting, with the best figure of each column in bold green. An angle that gives no stone still gets a row, marked Not valid, with the reason. A tick box adds the tilt averages, which costs about a second and a half per angle.

A chart draws one line per figure, each scaled to its own lowest and highest value, so lines compare by shape and not by height. Use This Angle sets the tier's angle in one undo step, and Copy CSV and Save CSV... export the rows. A table, a culet, a girdle tier and a tier that follows a relation cannot be swept. On a design with concave tiers the figures, and the tilt averages when ticked, are measured on the stone with its tools.

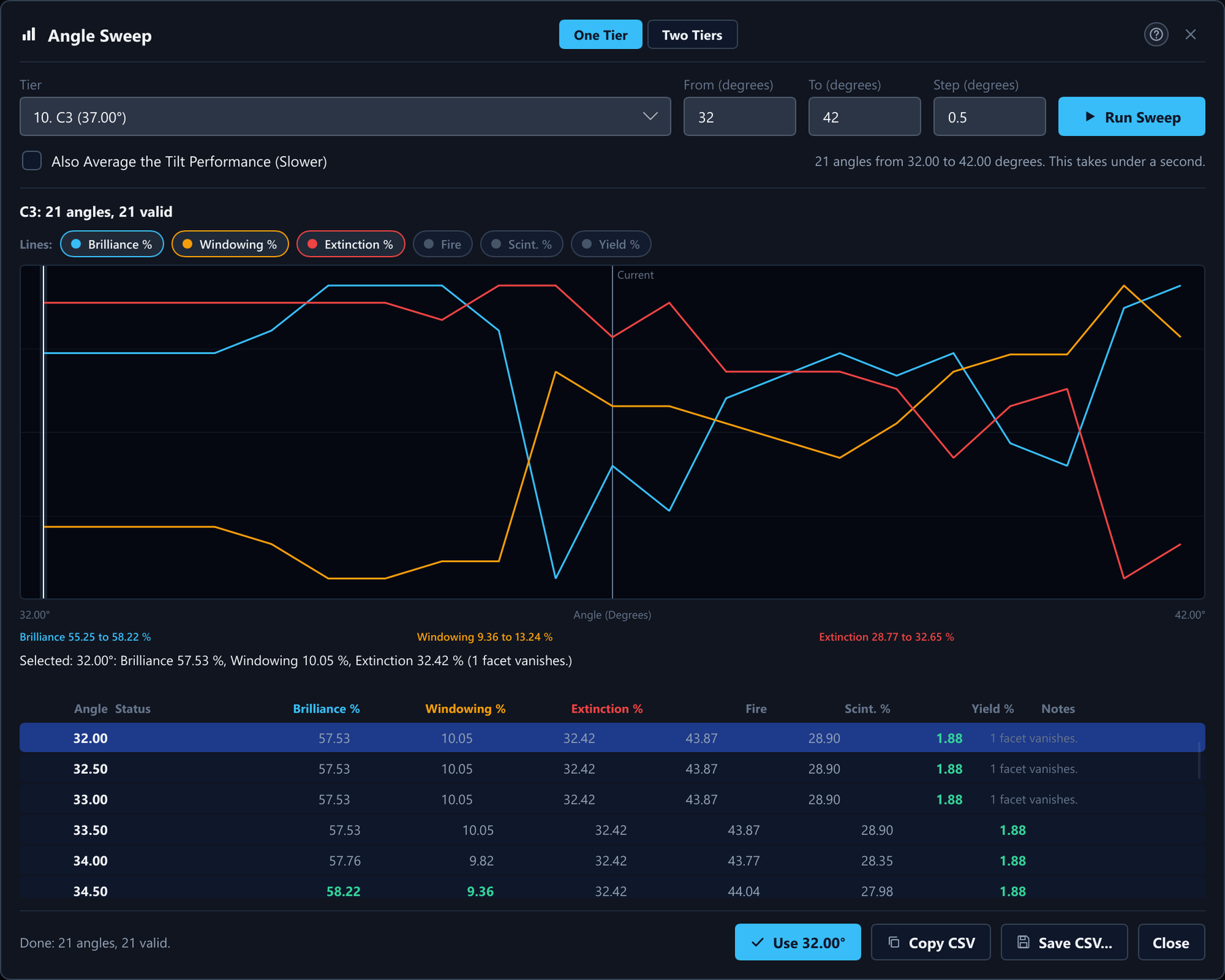

The Angle Sweep dialog: the tier and range fields, the chart, the selected angle and the table
Fig. 22 — The Angle Sweep dialog (One Tier, with Two Tiers beside it) for tier C3: from 32° to 42° in steps of 0.5° (21 angles, all valid), the brilliance, windowing and extinction lines with the current angle marked, the selected angle with its figures and the note that one facet vanishes there, the table below, and Use 32.00°, Copy CSV, Save CSV and Close.

Two-tier sweeps

The dialog's One Tier | Two Tiers pills switch to a mode that sweeps two tiers together, for example the crown main against the pavilion main, because the best angle of one often depends on the other. Each tier has its own From, To and Step, and a grid holds at most 900 angle pairs. The result is a heat map: one colored cell for each pair, bright for the best values of the figure you choose, a ring on the design's own pair, a star on the best pair, and hatching where a pair gives no stone. Outline the Best Cells draws the plateau, the pairs that are as good as the best one within the figure's noise threshold. Click a pair, or use the arrow keys, to read its figures and their change from the design's own pair. Use These Angles sets both tiers in one undo step, and Refine Around This starts a finer grid around the selected pair. The tilt averages can be added; above 100 pairs the dialog asks first.

Baseline and the compare window

The Baseline is the copy of the design that every later change is read against. It is set when a design opens and after an Optimize or a Retarget is applied, and Set Baseline keeps the design as it is now, with its solved masts, in memory for the session. A strip under the inspector's tabs shows the design's figures (brilliance, windowing, extinction, fire, scintillation, yield and the warnings) with their signed change since the Baseline, scored face-up under the Grading tray. A change is green when it is better than the figure's noise threshold, red when worse and grey when it is within the threshold, which most small nudges are. The strip says Out of Date when the design has not been solved since the change, and Measure Tilt adds the tilt averages. These figures describe the stone itself; the numbers in the Live Render corner describe this view under this light, so the two brilliance numbers differ. Compare to Baseline lists each tier as Same, Changed, Added or Removed. The compare window shows two stones side by side, or behind a split slider, in the solid view or path-traced, turned together. Retarget, Optimize, the Baseline comparison and a pair of variants all open it. Opened from the Optimize tab, its header has a Compare Against list: Current design (the default) or Original (before retarget), offered once a Retarget has been applied, so an optimized, retargeted stone can be judged against the stone you started with.

Under the stones, a table gives brilliance, windowing, extinction, fire and scintillation for both sides, measured table-up, each side in its own material, under the lighting selected in the viewport when you opened the window. For each figure it shows the value before, the value after, the change and one word: better, worse or same. A change smaller than a threshold reads as about the same: 2 points for brilliance, windowing and extinction, 3 for scintillation, and for fire 5 % of the before value but at least half an index point (the same thresholds color the Baseline strip). A few sentences put the result in words, from the most important change to the least (“The after design is brighter face-up (+4 %) and shows less windowing (-3 %).”), or say “No clear optical difference.” One button adds the average over four directions and 181 tilt angles for both stones, with a threshold of 1 point. Keep After applies the change exactly as the dialog's own Apply does.

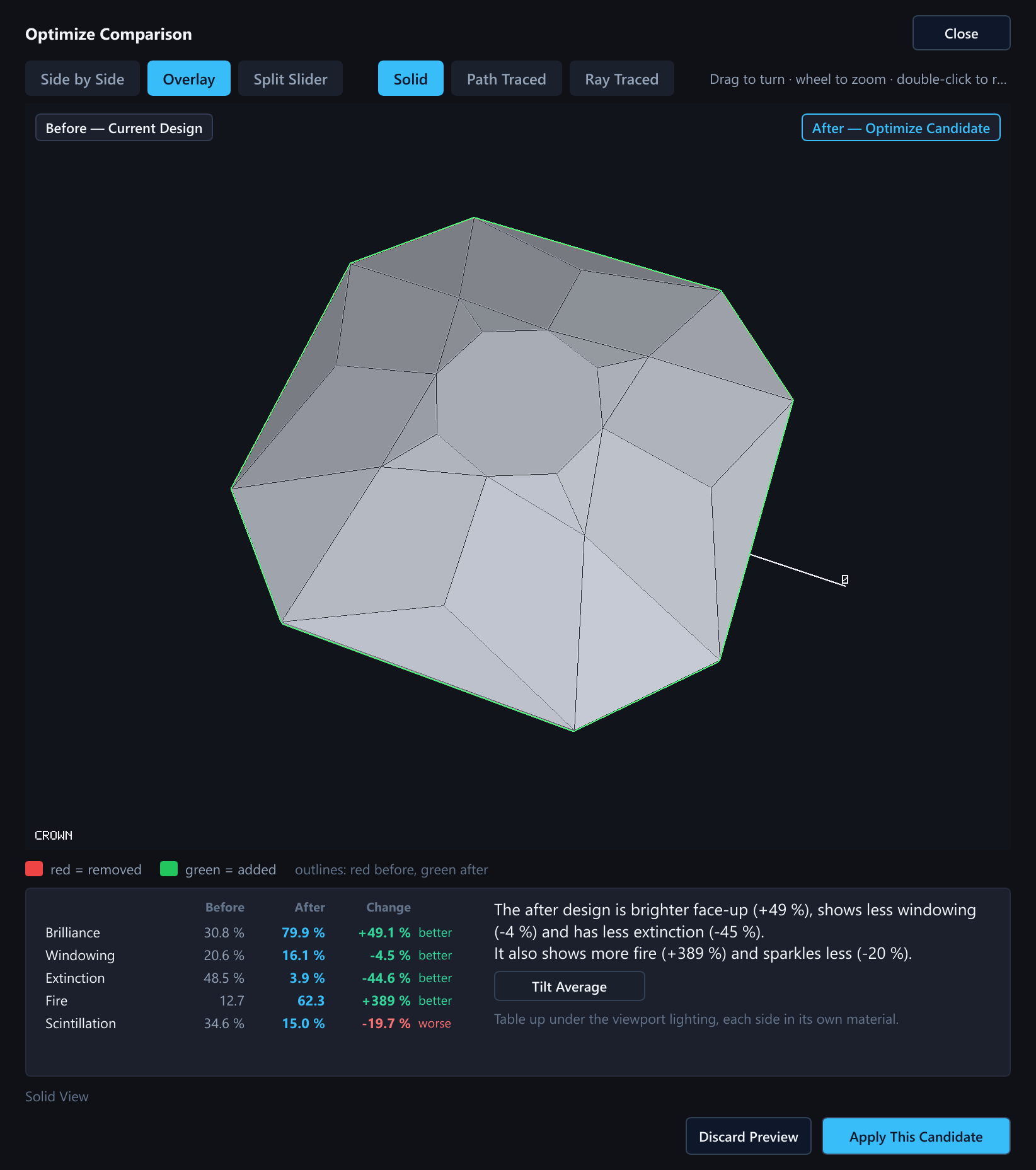

Compare window opened from Optimize, overlay view with the before and after table
Fig. 23 — The Optimize Comparison window opened from the Optimize tab, in the Overlay view with the solid stone: red marks what the optimized stone removes and green what it adds. The table gives before, after and change for brilliance (30.8 % to 79.9 %), windowing (20.6 % to 16.1 %), extinction (48.5 % to 3.9 %), fire and scintillation, with a sentence in words and the Tilt Average button. The Side by Side, Overlay and Split Slider choices and the Solid, Path Traced and Ray Traced switch are above the picture; Close is at the top right, and Discard Preview and Apply This Candidate are below.

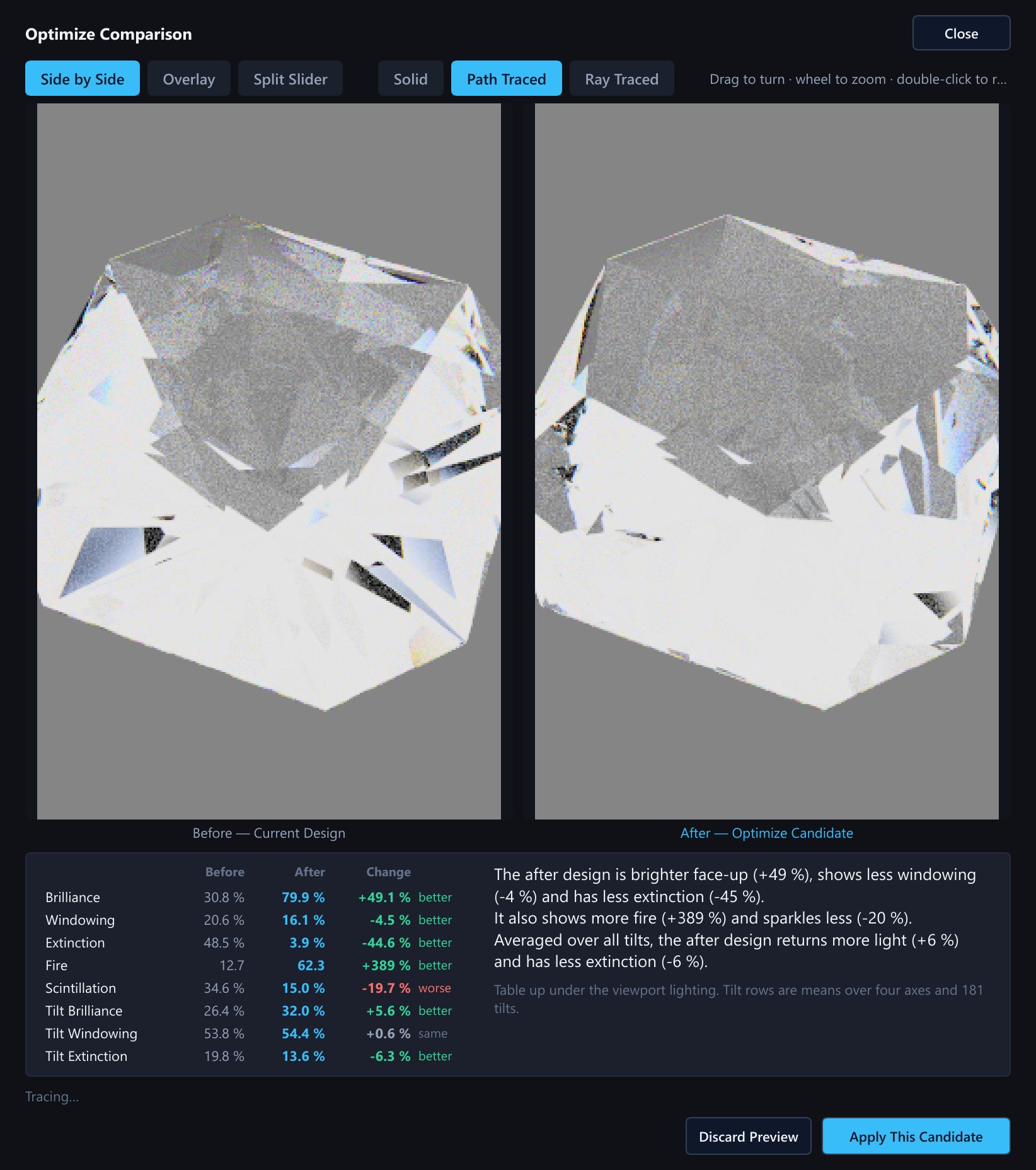

Compare window, side by side and path traced, with the tilt-average rows
Fig. 24 — The same window side by side and path traced, after the Tilt Average button: the table gains the tilt brilliance (26.4 % to 32.0 %), tilt windowing (53.8 % to 54.4 %) and tilt extinction (19.8 % to 13.6 %) rows and a sentence on the average over all tilts.

9History and variants

The inspector's History tab has three views. Steps lists every change made to the open design, newest first, each with a small picture of the design at that step. Variants lists named copies of the design that you chose to keep. Trials lists the states you tried while tuning, with their figures, for the session.

Steps

A click on a row goes to that step in one move, instead of pressing Undo many times. The design is put back as it was, and the tier table and the solid view update at once. The solved values stay out of date until the next solve, as after Undo. A jump is not an edit: it adds nothing to the history, and the steps you went past stay in the list marked “undone”, so you can go forward again. If you make a new change after going back, the steps after the one you stood at are dropped, which is the rule after Undo too.

A row shows what the step did, in the words of the Undo button's hover text, its number, and a mark on the current step. Several quick nudges of one angle count as one step. The pictures are drawn in the background, only for the rows in view, from one fixed angle in the flat-shaded solid view. A step whose design does not solve shows “Does not solve” instead of a picture, and the pictures of a concave design show the cuts of its tools. The list is one Tab stop with Up, Down, Home, End and Enter. The history starts again at New, Open and Load, and it is not saved with the design file.

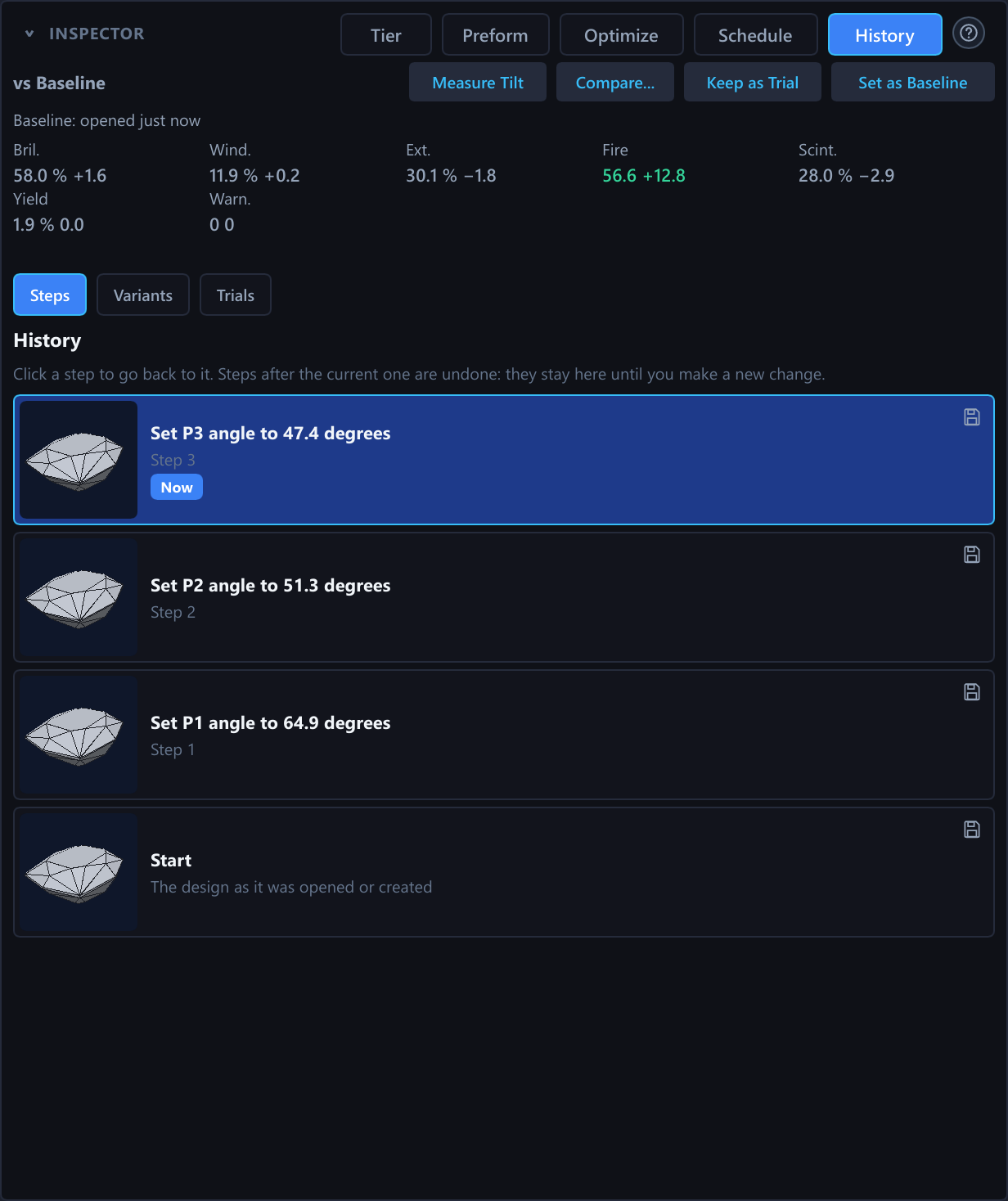

The History tab, Steps view: three steps and the start, with the current step marked Now
Fig. 25 — The History tab, Steps view (Steps, Variants and Trials are its three views): Set P3 angle to 47.4 degrees (step 3, marked Now), Set P2 angle to 51.3, Set P1 angle to 64.9, and Start. Each step has a small picture of the stone at that point.

Variants

A variant is a named copy of the whole design: the cutting instructions, the rough, the girdle size, the material, the relations and the concave tiers. It does not keep the lighting, the undo history or attached files. You can save one from the Variants view (the design as it is now), from the small save button on a row of the Steps view (the design as it was at that step) or from the command palette. A variant has a name and an optional note.

Variants are kept in the library under the design's id and not in the design file, so a design file you send to someone does not carry them. A new design that has never been saved gets a new id each time it opens, so save it once before relying on its variants.

Open on a variant makes the open design that variant, as one undo step. One Undo restores the earlier design, including its rough, material, relations and concave tiers. Each row also has Rename, Note and Delete. A variant remembers the variant it came from (“from: Variant 2”), so a run of saves reads as a chain, and opening an earlier variant and saving again starts a second branch; this is remembered only while the design stays open. Compare two designs takes any two entries from the current design and the variants. It shows them as pictures in the compare window or, in the Advanced interface, as the cutting instructions line by line with added and removed lines marked.

Limits: variants stay on this computer, a variant cannot be edited in place (open it, change the design and save a new one), and the list has no search or filter.

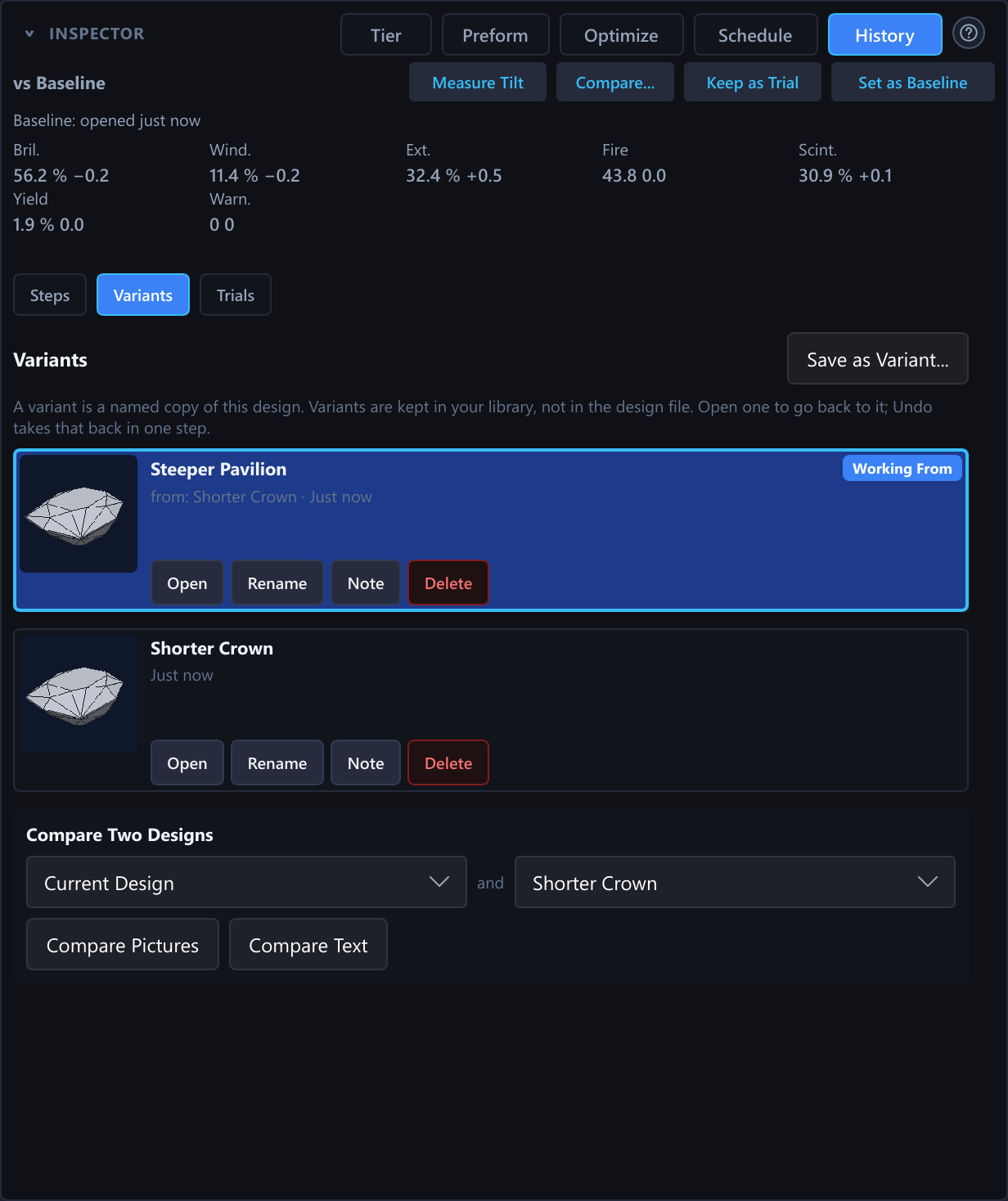

The History tab, Variants view: two saved variants and the Compare Two Designs box
Fig. 26 — The Variants view: Save as Variant, two saved variants, Steeper Pavilion (marked Working From, from: Shorter Crown) and Shorter Crown, each with Open, Rename, Note and Delete, and below them the Compare Two Designs box (Current Design and Shorter Crown, with Compare Pictures and Compare Text).

Trials

Trials, the third view, is a numbered list of the states you tried while tuning, each with its figures: brilliance, windowing, extinction, fire, yield and the number of warnings, scored under the Grading tray like the strip under the tabs. Keep as Trial (or Ctrl+Shift+K) keeps the design as it is now. Use This Angle and Use These Angles in the angle sweep, applying an Optimize candidate or a Retarget, and Accept in Tune add a trial by themselves, and the design as it was just before an Optimize or a Retarget is kept as Before Optimize or Before Retarget. Record Every Change, off by default, adds a trial for every change, at most one a second. Undo and Redo never add one.

The table colors each figure against the Baseline, green better, red worse and grey within the noise threshold, and outlines the best figure of each column. A click on a row shows that trial on the stone. Restore brings the design back as one undo step; Compare to Current opens the compare window; Set as Baseline, Save as Variant..., Delete, a Star and a note are on each row, and Re-score Trials scores trials made in another material. Trials live only for the session: they are gone when the design closes, so save one as a variant to keep it.

10Cutting mode

Edit → Cutting Mode..., the Cut Mode button on the command bar, or the command palette opens the cutting instructions made for the bench: one step per page, in the order of the cutting sheet, in type large enough to read from the lap. The design must be open and solved. A step shows:

Beside the step are two pictures: the stone after this step, which is the solid view with the Cut slider set to the step and this tier's facets highlighted, and an index wheel with the step's indices marked as dots.

Left and Right (or Page Up and Page Down) move between steps and mark nothing. Space or D marks the step done and goes on, and Esc closes the screen. You can also tick single index chips, for a step with many indices that you cut over several sittings. The two kinds of mark follow each other: ticking the last chip marks the step done, and taking the done mark back clears its ticks. The progress bar counts the steps marked done. Cutting mode follows the order of the cutting sheet and does not check that you cut the steps in order.

The marks are kept in the library on your computer, under the design's id, and not in the design file. They are written as soon as you make them, and sending a design file never carries them. A mark stores a fingerprint of the step's cutting values: side, angle, indices, depth or mast, cheater offset and, for a concave tier, the tool values. If you change the step afterwards, the page shows a Changed since you marked it badge and the step stops counting as done until you cut it as it now reads and mark it again. Renaming a tier or editing its note does not change the fingerprint. Reset Progress removes every mark of the open design, after a question.

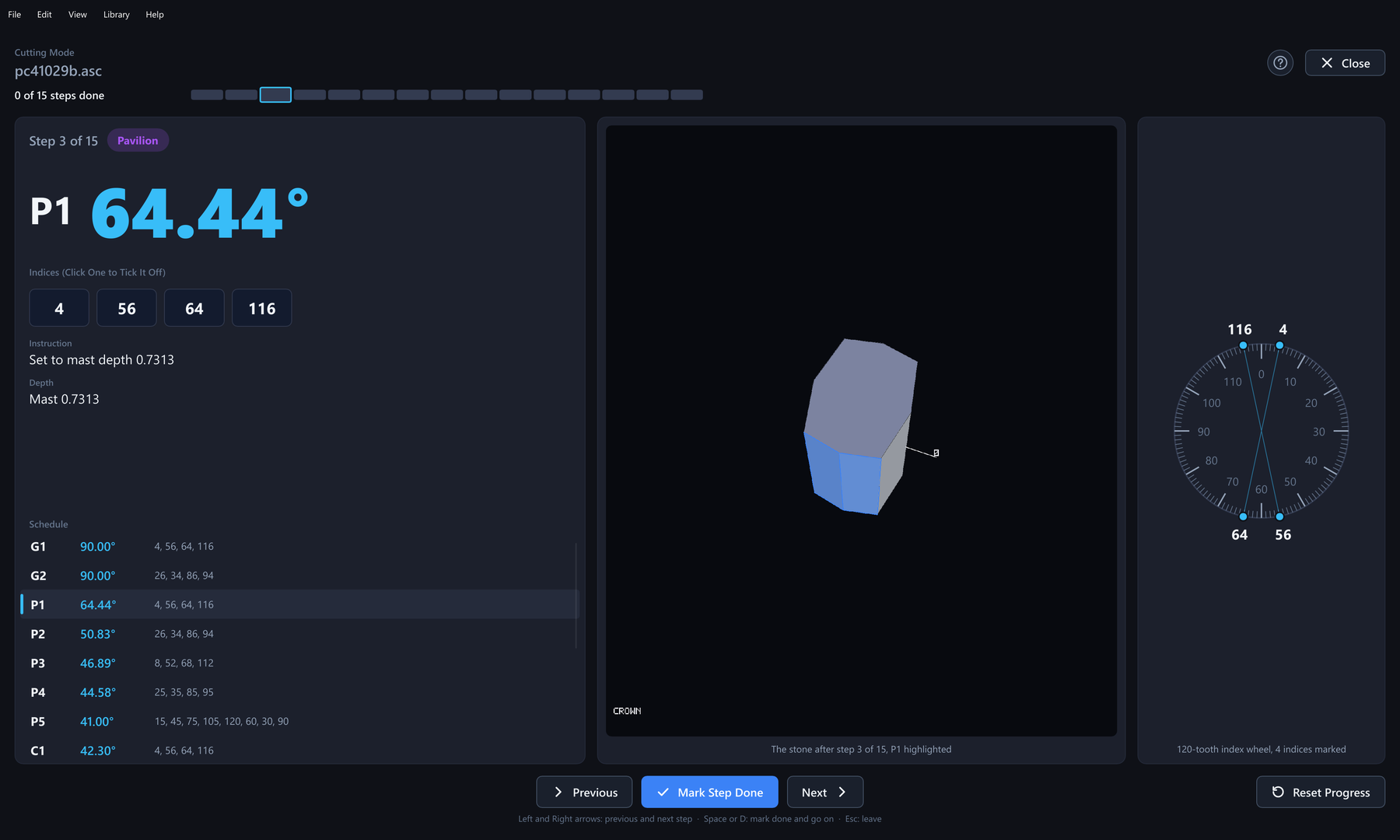

Cutting mode on step 3 of 15: the large angle, the index chips, the stone after the step and the index wheel
Fig. 27 — Cutting mode on step 3 of 15 of 41.029B FVS-65, tier P1 on the pavilion: the angle in large figures, one chip for each index, the instruction “Set to mast depth 0.7313”, the schedule, the stone after the step with P1 highlighted, and the 120-tooth index wheel with the four indices marked. Previous, Mark Step Done, Next and Reset Progress are below.

11Rough planner

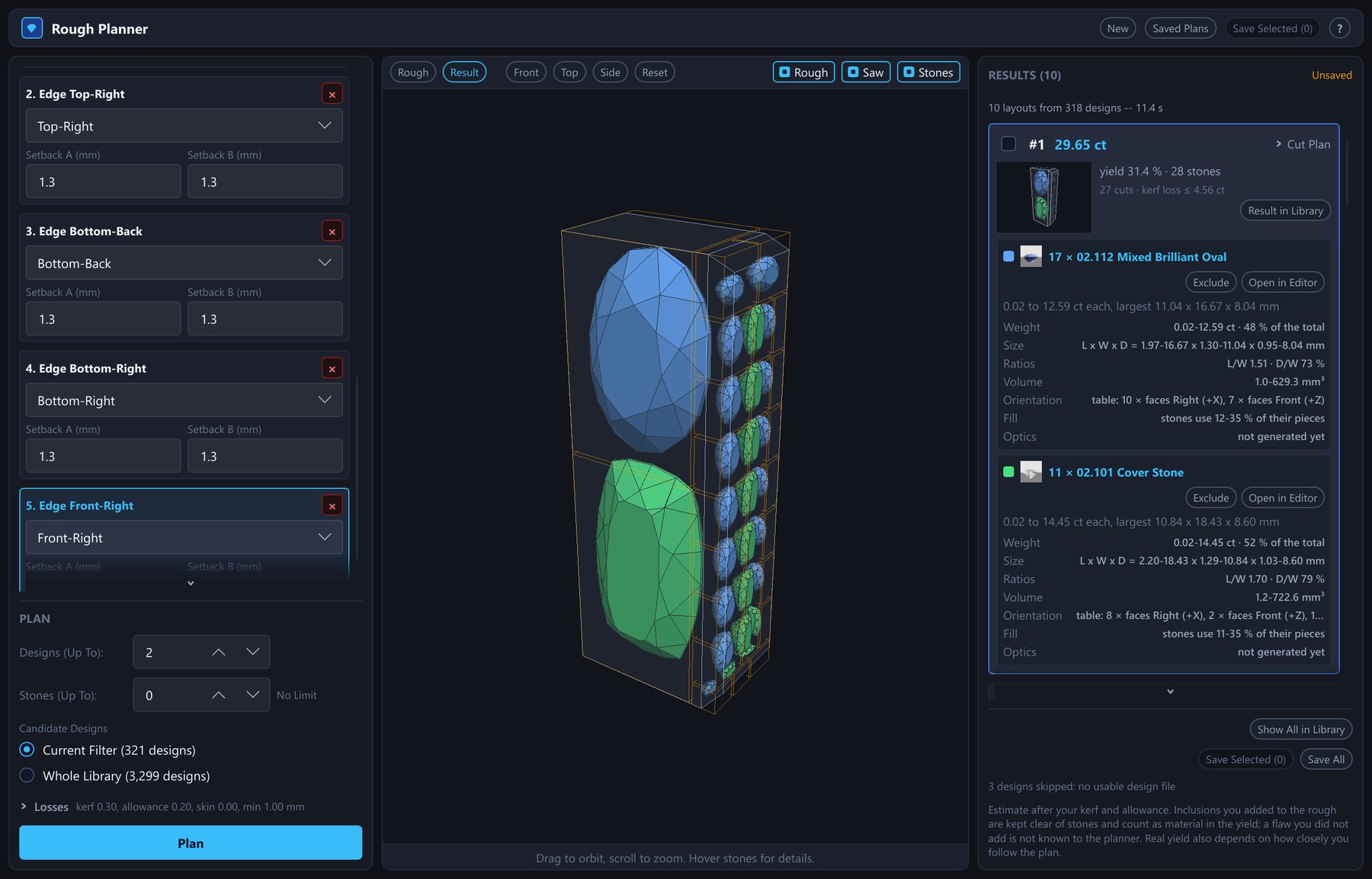

Library → Plan Rough... answers a question the preform's single-design yield figure cannot: given a piece of rough and the designs in the library, what is the heaviest set of stones that can be cut out of it? The planner opens in its own window, not a modal dialog, so you can keep browsing the library, click designs and move it to a second screen; closing it only hides it, and the model and results are there when you open it again. A plan that is running keeps running.

You model the rough on the left: a block (X, Y and Z in millimetres), a cylinder (diameter, length and axis), a water-worn pebble (the ellipsoid inscribed in a box) or a mesh imported from an OBJ, STL or PLY file, and then take flat cuts off it — an edge cut or a corner cut on a block, or a face cut in any direction on any shape. Cuts can be typed in as setbacks and angles, or made by clicking an edge, a corner or a face in the 3D view, with undo and redo for every step. The readout shows the model's volume and its weight in the chosen material (only materials with a known specific gravity are offered, because the specific gravity turns volume into carats), and if you type the weight you measured on a scale it checks the model against it and tells you when the two disagree; Fit to Weight scales the whole model to the weight you typed. Designs (Up To) (1 to 99, 1 by default) sets how many different designs one layout may mix, and Stones (Up To) (0 to 99) how many stones it may hold in all. With the stone limit at 0, the default, the planner fits as many stones as weigh the most; with a limit it searches for the heaviest layouts of at most that many stones. The planner returns up to 10 layouts, heaviest first.

A non-convex rough from a mesh file. A scanned or irregular rough can be imported as OBJ, STL (ASCII or binary) or PLY (ASCII or binary). Choose the file's unit (mm, cm, m, inch or micrometres) before importing; if the size looks wrong, the planner suggests a unit but never applies it. The file is read in the background, and a file larger than 64 MiB is refused before any of it is read. If the mesh is closed, the planner uses the mesh itself and not only its convex outline: no planned stone reaches into air at a notch or a hollow, and the volume, the weight check, Fit to Weight, the yield and every fill percentage use the volume of the material. A hollow rough, written as an outer surface plus one more closed surface for each cavity, has the cavity volumes taken out whichever way they are wound. If the file cannot be used as a closed mesh (no faces, an open or non-manifold surface, no volume, or more than 200,000 triangles), the import falls back to the convex hull of its vertices and says why; a smooth scan, whose outline is too fine to stand in for it, is refused instead and has to be decimated first. Small scan defects are repaired first: hair-wide gaps are joined, faces turned the wrong way are turned back, and holes whose edge loop is up to 5 % of the bounding-box diagonal long (at most 64 edges) are filled; the status line says what was done. A mesh that crosses itself is detected and falls back to its convex outline with a note naming the place. A smooth scan is planned from the scan itself: a simplified outline of at most 64 planes only sizes the grid, every stone is checked against the scan, and the plan uses every processor core. A scan is planned on a coarser grid than a modelled rough and stops at the Scan Plan Time Limit (120 s by default, 0 for none); a stopped plan shows the best layouts found so far, marked as a partial search. Saved plans keep the mesh, and older plans still open.

Inclusions. A rough imported from a mesh file can take inclusions: pick a closed mesh of the crack, feather or crystal (OBJ, STL or PLY, in the same coordinates and unit as the rough), or locate one from photos taken on a fixed camera rig (a beam-splitter cube of known size calibrates the rig). Stones keep clear of an inclusion with a margin of 0.3 mm by default (for an inclusion located from photos, the larger of that and twice the uncertainty of the solution), while the weight, Fit to Weight and the yield count it as material, because it is stone you hold. An inclusion that reaches the surface is refused (model it as a notch instead). Inclusions on a block, cylinder or pebble, and keep-out shapes without a mesh, are not available yet.

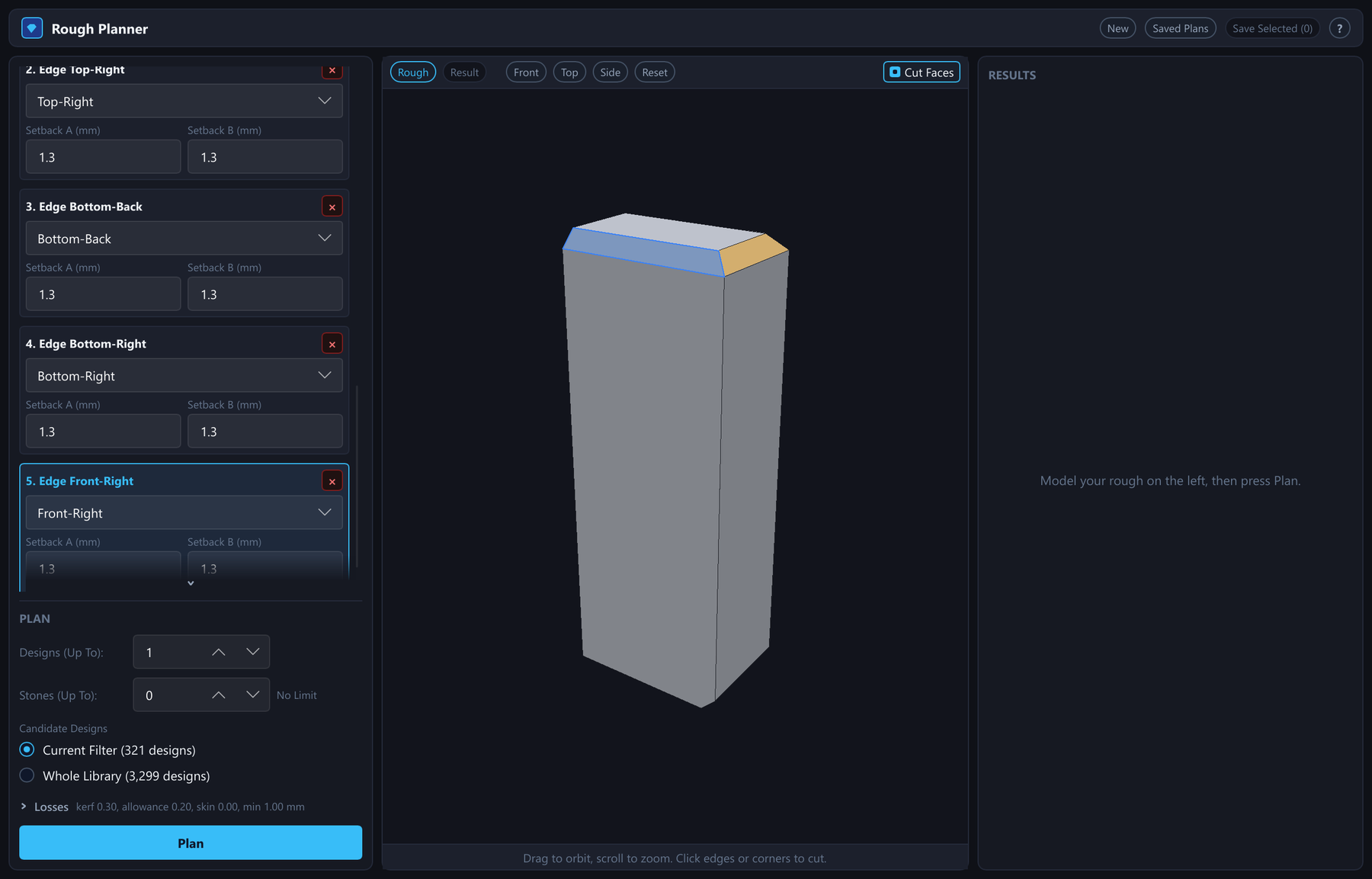

Rough Planner window before planning: the list of edge cuts, the empty 3D view and the plan controls
Fig. 28 — The Rough Planner before planning: the list of edge cuts (cuts 2 to 5 in view, each with its two setbacks, here 1.3 mm), the 3D view with its Rough, Result, Front, Top, Side and Reset buttons and the Cut Faces box, the Results column waiting for a plan, and the Plan controls below: Designs (Up To), Stones (Up To) with No Limit, which designs to try (here the current library filter, 321 designs, or the whole library of 3,299), and the losses for kerf and allowance.

The Candidate Designs are either the designs the library's search and filters currently show, or the whole library. A single design can be excluded from planning — a plain cube that keeps winning, say — from a button on its result row or from the library's context menu; it stays in the library and is only left out of the candidates. The loss settings default to 0.30 mm saw kerf, 0.20 mm allowance per side of each stone, 0 mm rough skin and a 1.00 mm minimum stone width, and can be edited in the window. A design's finished size (footprint, height, volume and convex outline) is measured once by solving its facets, then stored in the library database, so only the first run over a large library is slow; the measurement is repeated automatically when a design's geometry changes. Designs without a usable design file — catalogue entries known only by an angle table, or schedules that rely on the preform to close the stone — are skipped and counted in the results. A design's concave tiers (section 7) are honoured in the volume, the carat weight and the yield, and the 3D view draws the tool cuts. The fit uses the carved outline: a tool that removes a vertex of the outline lets the stone sit tighter, while grooves and dimples inside the outline change nothing. A design whose concave tiers cannot be resolved is skipped and counted; it is never planned as a flat stone.

Two kinds of layout are ranked together. A single stone is fitted exactly: the planner uses the design's real outline, turns it freely in every direction and scales it to a very good fit inside the rough, so the table can end up tilted against every rough face. Several stones use the box model: the rough is sawn edge to edge in three stages (slabs, then bars, then pieces, with the kerf lost at every cut; the planner tries all 6 orders of the three axes), and each piece holds one stone treated as the smallest box around it, so a round stone is treated as needing a square footprint. Stones of different designs can be mixed. The cut plan of a sawn layout is written as sawing instructions, and each piece names the design cut from it, which rough face its table faces, and the finished size and weight; an exact single stone is not sawn and has no saw stages.

Every result is also shown in a 3D view: the stones are drawn as their real designs, each design in its own color, inside the rough and the saw pieces, and hovering a stone tells you its design, weight and place in the plan. Each design in a result carries its own metrics: its share of the layout's weight, its finished size and proportions, its volume, how the table is oriented in the rough, how much of its piece it fills, and its brilliance, extinction and windowing from the tilt curves already stored for the design.

Rough Planner result: 28 stones of two oval designs drawn inside the rough and the result card
Fig. 29 — A result with the library filtered to ovals: 10 layouts from 318 designs in 11.4 s; the selected layout, with at most two designs, 29.65 ct at 31.4 % yield, cuts 28 ovals of two designs (17 and 11, from two large to many small) from a rough that weighs 94.40 ct, drawn in their saw pieces, with each design’s weight, size, ratios, volume, orientation, fill and optics in the card.

A design's name in a result is a link into the library; a button on each result narrows the library list to the designs of that result, and another to the designs of all of them. Results can be saved in the library database, exported to a plain-text plan file and imported again, for example on another machine. When a saved plan is opened, every design is checked against the library, and the plan says which designs were deleted, changed since, or found again by title.

READ THE NUMBERS AS AN ESTIMATE

The results are an estimate after your kerf and allowance; real yield also depends on inclusions you have not modelled and on how closely you follow the plan. The planner keeps stones out of the inclusions you add to a mesh rough, but knows nothing of the others, and assumes stones that come out exactly to their design's proportions; a cylinder and a pebble are approximated by polyhedra slightly inside the true shape, and around the notches of a mesh it checks stones rather than optimising them. It works with the local library only; if a remote catalogue is selected, the window asks you to switch back. Use the ranking to compare options, and do the final marking-up on the rough itself.

Rough color and color zoning

The planner can also take the color of the rough from photographs, so that the stones it plans are drawn, and rendered when you adopt a design, in the color of the piece they would be cut from. It is part of every build of the program: the Rough Color... button sits next to Locate Inclusion from Photos... in the rough’s form, and is available when the rough is a mesh and no plan is running. No special build or setting is needed.

The button opens a window of eight steps: Checklist, Photos, Calibration, Masks, Surfaces, Fit, Compare and Accept. It uses the same eight-view camera rig with a backlight as Locate Inclusion from Photos. For each view you give a photo of the stone and a photo of the empty rig with the backlight on (the white frame), and ideally one with the backlight off (the dark frame); RAW files are best, because they are linear. The program divides the stone photo by the white frame, so the lamp and the lens cancel, and fits a real absorption spectrum per millimetre of path, not a texture, so a stone of any size and orientation can be predicted. The result shows the predicted color under D65 daylight and a warm lamp, with an uncertainty next to every color, and a leave-one-view-out check: the fit is repeated without each view and asked to predict it.

A color-zoned rough (a watermelon or bicolor tourmaline, banded amethyst, an ametrine, a zoned sapphire) is described with up to four zones besides the base color. Each zone is a half space, a slab, a cylinder, a prism or a sector. You add a zone and type its numbers, drag its handles in the planner’s 3D view, fit it from boundary points you click in at least two photos, or accept a zone suggested from the photos; the program then fits one color for each zone.

Once the result is accepted against a saved plan, the stones in the result scenes and thumbnails are drawn in their own color, and Stone Orientation offers Keep Planner Pose or Best Color, which turns each stone so that as much as possible of the last zone is under the table. Use Color on a design row opens the design in the editor and saves the color as a custom material named after the plan and the design. It carries real millimetres, so the color scales physically with the stone width. A zoned material’s color is its zones, so the design’s Body Color and the Live Render Color control are greyed out for it. Ametrine, a zoned material that is built in, is described on the materials page.

Limits: one backlight gives one color, so the program cannot recover a color change (alexandrite, a color-change garnet), pleochroism or scattering. A frosted or uneven skin hides the body color, and immersion in a liquid of about the stone’s index helps most. The method has been tested against synthetic photos and has not yet been measured against real stones, so treat a predicted color as an estimate and read its uncertainty. The manual chapter apps/pleochroma-cut/docs/manual/24-rough-colour-and-zoning.md has the capture protocol and every step.

Sources: crates/pleochroma-cut-core/src/rough_plan/, apps/pleochroma-cut/src/gui/rough_plan/, and the manual chapter apps/pleochroma-cut/docs/manual/15-planning-a-rough.md. Importing a scanned or irregular rough as an OBJ, STL or PLY mesh works, and stones keep clear of the inclusions you add to it.

12Solid inspection view

Solid shading in the Live Render panel, with the Solid, Path-Traced and Ray-Traced switch
Fig. 30 — Solid shading in the Live Render panel: the stone drawn flat and untextured, here seen from above and zoomed in, with the Solid, Path-Traced and Ray-Traced switch, the lighting-preset picker and the Tilt Curve, Front, Top, Turn 90° and Export buttons above it, and the mouse hints below. The Edit tab’s solid view, described below, adds facet picking: click a facet to jump to its row in the schedule.

The Edit tab's second viewport shows the exact polyhedral solid (facet edges and vertices, not a tessellated approximation), flat-shaded, and it updates after almost every edit, not only after Solve. Buttons choose what it shows: Solid, Path-Traced (the Live Render picture), Ray-Traced and Diagram (a flat faceting diagram with crown, pavilion and profile panels, ringed by the index wheel). Keep Solid selected and click a tracer to draw the solid's facet edges over its picture. Hover over a facet to read its tier, angle, index position, block and margin over the critical angle. Click a facet to select its whole tier in the tier list; click a row and its facets tint in the viewport. When an edit has not solved yet, the viewport keeps the last solved solid on screen under a banner. When a design does not solve at all, the last solid that closed is shown dimmed and the banner names the problem.

The Cut slider

The slider in the viewport toolbar shows the stone being cut. All the way left is the Rough. Each step to the right adds one tier, and the label names it (After P1 (3 of 9)). All the way right is Finished, where it starts whenever you open or create a design. Every position is a whole, closed stone that you can orbit and pick, and the facets of tiers not yet cut are not on it. Without concave tiers, the steps follow the order of the cutting instructions. With concave tiers, they follow the order in which the stone is cut: the pavilion and girdle facets, the concave pavilion tiers, the crown facets (the table excepted), the concave crown tiers and last the table.

The slider's border turns amber while the stone is cut back. The Live Render picture and the Optimize and Retarget previews follow the slider, and Live Render shows a badge with a Show Finished button. The Diagram always shows the finished design. Exports, the tilt video, the tilt curves and the hover pictures always draw the finished gem (section 13).

Handles and Slice

A selected, solved tier shows three handles on its facet. A tilts the tier, D moves it along its normal, which pins its mast (the toast says what it met before), and I turns it around the index wheel by whole teeth. Each handle moves the whole tier, every facet of its symmetric orbit, and the tiers that meet it by name follow. An angle snaps to 0.1° and a mast to 0.01. Shift gives fine steps and the Snap pill turns the snapping off. One drag is one undo step, and Esc during a drag puts the design back. The Diagram view has the same handles on its flat panels. A tier whose angle follows a relation has no angle handle. The Larger Handles preference (section 16) makes the handles about 60 % bigger for touch screens and pens.

Slice starts a new tier by drawing on the stone. Drag a line across the solid view and the part to the right of your drag direction is removed; Flip reverses it. The plane is snapped to the nearest index and an angle rounded to 0.1°, and the provisional tier appears with a green outline. Drag its depth handle inward to cut it in, choose Symmetric for the whole orbit or a single index, then Keep to add the tier as one undo step or Discard. Slice needs the 3D stone and is not available in the Diagram view.

13Export

Export selects Path-Traced or Ray-Traced. Ray-Traced uses an Anti-Aliasing tap count and Fire instead of progressive samples, and has no denoising. Local CPU/GPU and matching protocol-29 remote peers carry the chosen engine; a frozen job preserves it.

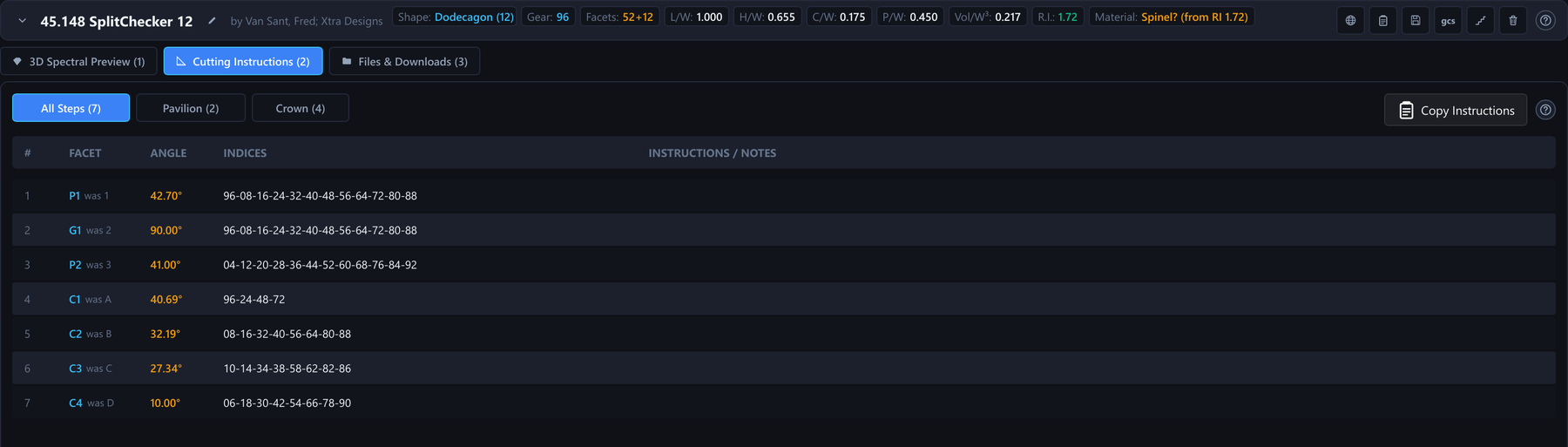

Cutting instructions table
Fig. 31 — The cutting instructions of 45.148 SplitChecker 12: one row per step with facet (and its earlier number), angle and index-gear positions, split into All Steps, Pavilion and Crown, with a Copy Instructions button.

The command bar's File menu holds the design's own exports next to New Design, Open and Save, among them two built from the solved schedule: Export Cutting Sheet (HTML), a self-contained printable page with an embedded crown/pavilion/profile diagram and one row per tier (sequence, name, angle, indices, solved mast, meet instruction, and any cheater/azimuth offset), and Export Diagram (PNG), the same facet drawing alone at print quality. Where a real girdle diameter is set, the cutting sheet also prints each facet's cutting depth in millimetres and its unsigned angle of elevation for a machine's dial, alongside the dimensionless mast.

A concave tier prints on the cutting sheet as its two lines in one band (section 7). The cutting sheet and the diagram export refuse a design that does not solve (“Cannot build a cutting sheet: ...”). An image export always draws the finished gem, whatever the Cut slider shows. When the slider has the design cut back, the export first rebuilds the whole stone on the background solver, and when the design does not solve it exports nothing and says “Nothing was exported: the design does not solve” with the solver's reason (apps/pleochroma-cut/src/gui/editor/finished_stone.rs).

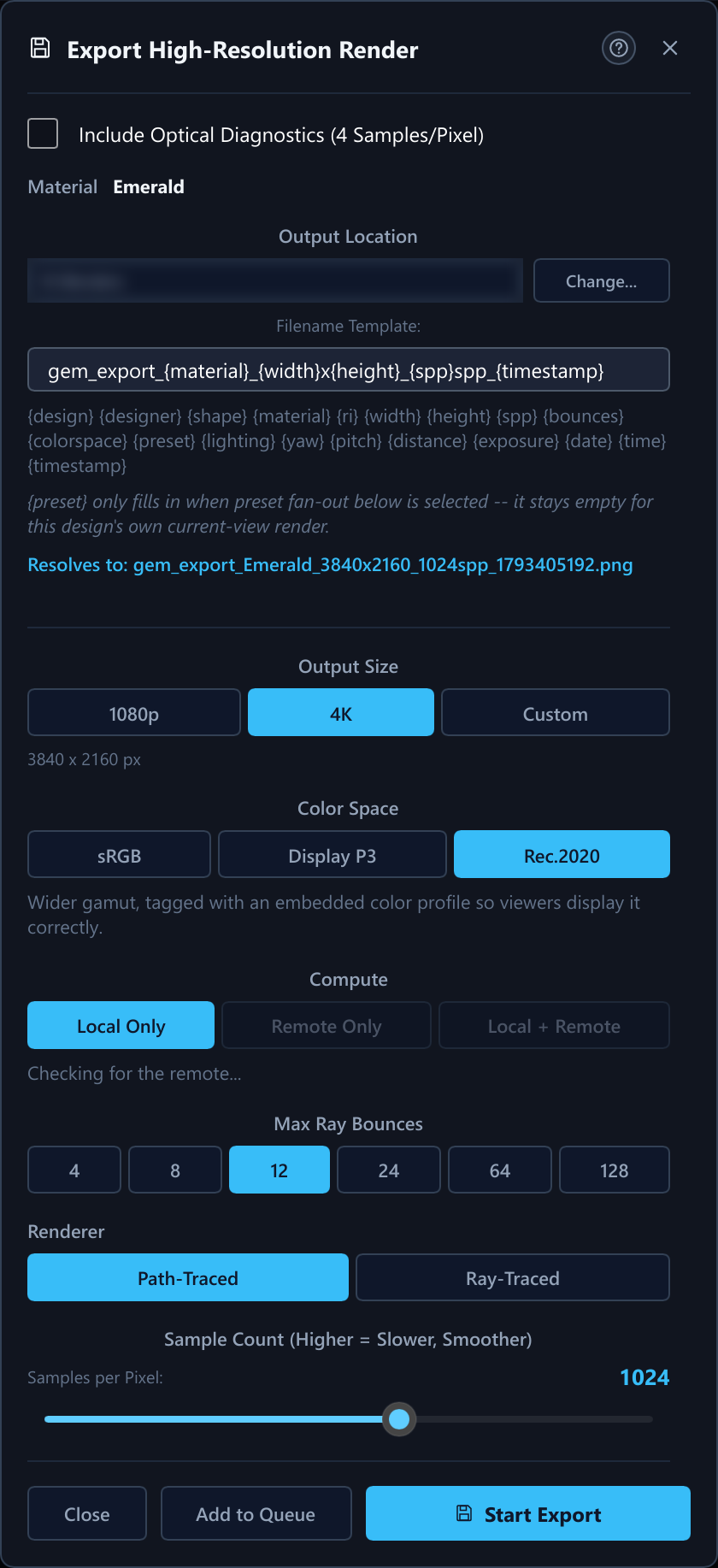

Export High-Resolution Render dialog before an export, with the Renderer row
Fig. 32 — Export High-Resolution Render before an export: the Include Optical Diagnostics box and the material (Emerald), the output folder and file name template, 4K output size, Rec.2020, Local Only (the remote choices are dimmed while the app checks for the remote), 12 bounces, the Renderer row with Path-Traced selected and Ray-Traced beside it, and 1024 samples per pixel, with Close, Add to Queue and Start Export.
Max resolution
8192 × 8192 px (MAX_EXPORT_DIM)
Max samples
32 768 per pixel (MAX_EXPORT_SPP)
Max bounces
128 (MAX_EXPORT_BOUNCES)
Color spaces
sRGB, Display P3, Rec. 2020 (Display P3/Rec. 2020 exports embed an ICC profile so they aren't misread as sRGB)
File formats
Read and write: GemCAD .asc, the native .psdd design file, 8-bit PNG renders. Read and import: .gem and .gcs. Write, experimental: .gcs. Details below.

Constants from apps/pleochroma-cut/src/bridge/export_thread/params.rs.

The master still is an 8-bit PNG. The export dialog can also render the stone under several saved views in one export (Also Render With These Presets), and an export can be added to the render queue instead of starting at once.

The cutting sheet

The sheet follows the layout of a printed fantasy-cut page. From top to bottom, a block with nothing to print is left out rather than filled with a guess:

The order and the labels are the same everywhere in the app (the sheet, Cutting mode, the Cut slider and a Build This Design lesson). Pavilion and girdle tiers come first, then the crown, and the table is always last; a concave tier is cut after the flat tiers of its side. A tier that meets a facet cut later moves to just after the last facet it meets. Codes are numbered separately for each letter in cutting order (P1, P2, … G1, … C1, … T and Culet), angles are printed unsigned, and positions are written with dashes and two digits (96-08-16-24, 03.50 for a position between two teeth). The plain-text version has the same blocks without the four drawings. The sheet always re-solves the design fresh, because the masts it prints are what you set a mast gauge to. Export Diagram (PNG) is one wide picture of the crown, pavilion and profile panels, about 1800 × 720 pixels.

Design file formats

Neither reader is affiliated with or endorsed by those tools' authors. The file-format table sets the formats side by side.

14Render jobs

Collect still pictures and tilt videos as render jobs, then let the program render them one after another while you keep working, or overnight. Add to Queue sits next to Start Export in the export dialog and next to Start Video Export in the tilt dialog; it saves a job and renders nothing yet, and the two buttons do not replace each other.

What a job keeps

A job keeps a frozen copy of everything it needs: the finished stone with its concave tools and any frosted tier or facet, the material and its color, the lighting, the camera, the size, the engine, the samples or fixed AA taps and Fire, the Optical Diagnostics choice and the other export settings, so changing the design afterwards does not change what it renders. A job file written before frosting existed has no frosting and renders the stone polished. It does not freeze the remote worker: the address and certificates are read from Settings when the job runs, and a job whose remote is gone renders on this computer with a note. It does remember where to render (local only, local and remote, or remote only) and the transfer. With presets ticked under Also Render With These Presets, each picture is its own job. The file name is fixed when you add the job, and “ (2)” is added if the name is taken by then; a date or time in the template is the time of Add to Queue.

The Render Jobs window

Open it from File → Render Jobs... or from the Jobs button at the top of the main window, which appears while a job waits or runs (“Jobs: 3 waiting”, or “Rendering 2 of 5 · 42%” with a progress bar). A row shows the number, name, state (Queued, Running, Paused, Done, Failed, Cancelled), what it renders and its progress. The list is kept in the library, so it survives a restart, and closing the window does not stop a render.

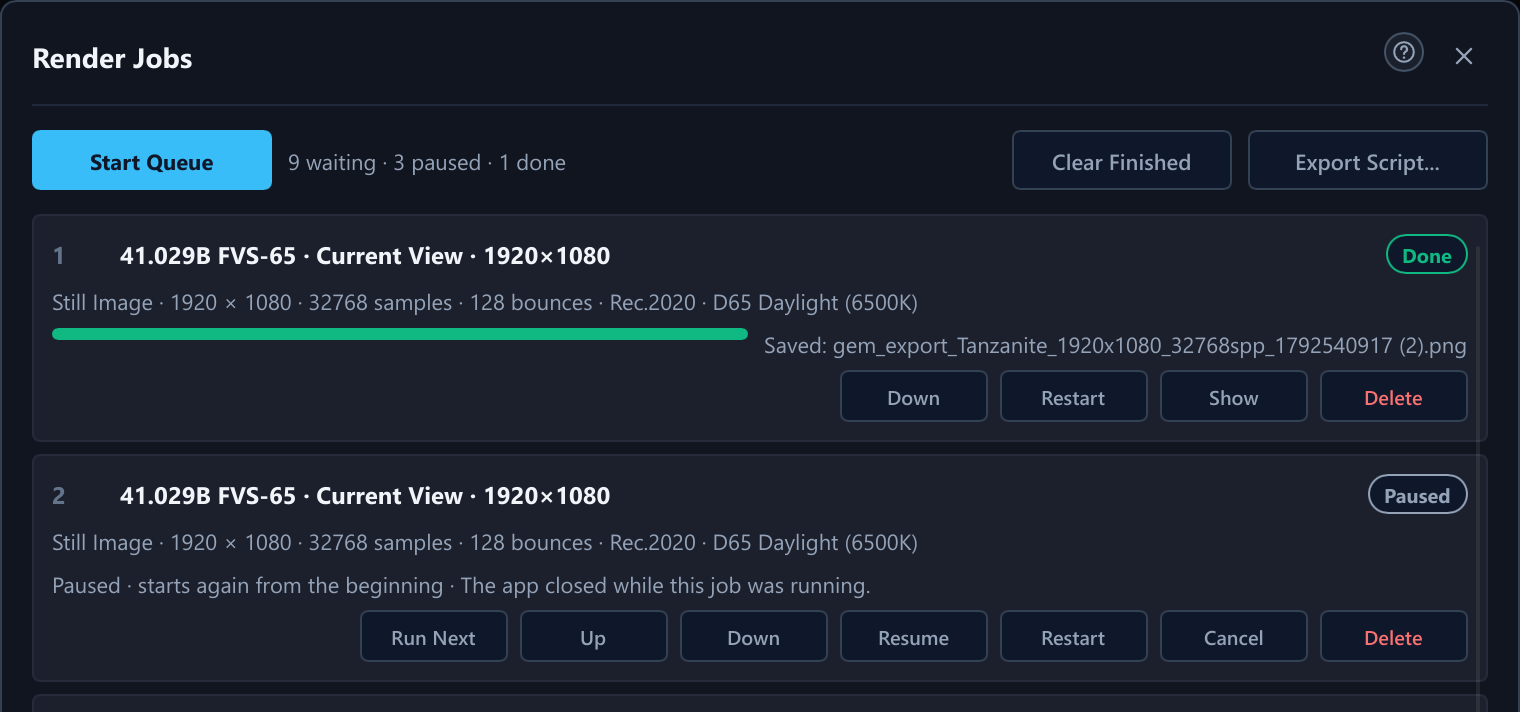

The Render Jobs window with a finished and a paused still-image job
Fig. 33 — The Render Jobs window with stills of 41.029B FVS-65 (Current View, 1920 × 1080 at 32768 samples and 128 bounces, Rec.2020), the first Done and the second Paused: Start Queue, the counts (9 waiting, 3 paused, 1 done), Clear Finished and Export Script, and on each row buttons such as Run Next, Up or Down, Resume, Restart, Cancel, Show and Delete.

Start Queue renders the waiting jobs from the top down, one job at a time, and turns into Pause Queue. The queue never starts by itself, not even when the program starts, and it stops when the last waiting job is done. A row offers only the buttons that make sense for its state: Run Next (moves it to the top without interrupting the running job), Up and Down, Pause, Resume, Restart, Cancel, Show (opens the folder) and Delete. Clear Finished removes Done and Cancelled jobs. Delete and Clear Finished never delete pictures, videos or frames, only the list entry.

Pausing works frame by frame

A paused still starts again from the beginning when resumed. A paused tilt video keeps every finished frame and resumes at its first unfinished frame in the same folder; the video file is made once all frames exist, and the frames stay on disk (at large sizes, many gigabytes) until the job is finished or you delete the folder. Restart throws the frames away and starts at frame one. If you close the program while a job renders, it asks first and the job waits as Paused; after a crash or power cut the job is found as Paused with a note, and at most one frame is rendered twice. Only one job renders at a time, though a picture exported directly from the dialog can render alongside it, with both slower. An HDR map must stay where it was and unchanged until its job has rendered.

Exporting a script

Export Script... writes the unfinished jobs, in queue order, to a new folder named render-jobs- with the date and time, so nothing is overwritten. You choose PowerShell (.ps1), shell (.sh) or both, whether to render on this computer or on this computer and the remote worker, and whether the finished files go into the script folder. The folder holds run-render-jobs.ps1 and run-render-jobs.sh, a jobs/ folder with one job file per job (and assets/ with any HDR maps) and, if chosen, renders/. Copy it to the computer that should render and run powershell -ExecutionPolicy Bypass -File run-render-jobs.ps1 or sh run-render-jobs.sh. The script calls pleochroma-cli once per job (set PLEOCHROMA_CLI to its full path if it is not on the PATH), the engines, remote address and certificate folder can be changed at the top of the script, and a tilt video that stopped part way continues where it stopped.

Running a job file by hand

A job is a *.job.json file. pleochroma-cli render FILE.job.json renders a still and pleochroma-cli tilt-video FILE.job.json renders a tilt video; a file of the other kind is refused. Both use the program's own render engine, so the picture is the one the program would have made.

OptionMeaning
--engine path|rayOverride the frozen renderer; Ray-Traced jobs use format 2 and fixed AA taps without denoising.
--local cpu|gpu|cpu+gpuEngines of this computer; the default is cpu+gpu. Without GPU support in the build everything renders on the processor and a note says so.
--remote HOST:PORT with --cert-dir FOLDERAlso use a remote worker; the two go together.
--compute local|remote|bothReplace the job's own choice; remote and both need --remote.
--transfer full|final, --contribute-localReplace the transfer choice; with final, this computer renders a share too.
--out FILE.png / --out-dir FOLDERrender only: another picture path. tilt-video only: another frame folder.
--restart, --quiettilt-video only: start again from the first frame (a video resumes by default). No progress lines; notes and errors still print.

Standard output is one line, the path of the finished file (for a video the MP4 or GIF, or the frame folder when no video could be made); progress, notes and wrote PATH go to standard error. Exit codes: 0 done, 1 wrong command line or the other kind of job file, 2 a job file that cannot be used (not a job file, a newer version, an invalid value, an HDR map that is missing or changed, a frame folder that belongs to another job), 3 a file could not be read or written, 5 the render failed or was stopped.

A render done only on the CPU, or only on the GPU of one computer, gives the same picture every time. One that splits its work between the CPU and the GPU, or uses a remote worker, is the same only statistically: the samples are shared by measured speed, so the noise differs a little between runs, and both pictures are equally correct.

15Tutorials and guided lessons

Help → Tutorials... opens the tutorial browser. Tutorials are grouped in sections (Getting Started, Tiers, Solving, Optimizing, Viewing, Output, Library, Preferences, and Built from the Library for lessons made from a design), there is a search box, every finished tutorial gets a Done mark, and a Reset Progress button clears the marks. There are 90 short tutorials, each teaching one tool, from adding a tier to angle sweeps, variants, concave tools, optical diagnostics, cutting mode and the Rough planner (crates/pleochroma-editor/src/guide/tutorials). Two longer lessons sit beside them: the worked example, in which you build a round-brilliant-style stone yourself, tier by tier, and an eight-step welcome tour. A first-run dialog offers the tour, a start from a template, or nothing.

Video tutorials are on the Pleochroma YouTube channel: https://www.youtube.com/@Pleochroma.

A small guide panel walks through the lesson. Each step lists numbered actions with the exact values to type, outlines the control it is about and says what to look for. A step is judged from the state of the design and not from the buttons you pressed, so any route to the goal counts: the tier form, an inline edit, Undo and Redo, or auto-solve finishing first. A step whose result leaves no trace in the design, such as a file exported or the Cut slider moved, is judged from the action itself. Controls the step does not need are dimmed, and their keyboard shortcuts do nothing, until the tutorial is closed. Back returns to the previous step, Skip Step moves on, and the cross closes the tutorial. Which tutorials you finished is kept in the program's settings and not in a design.

Build This Design

Any design in the library, local or remote, can become a tutorial that shows how to cut it from scratch. Use the steps button in the design header, Build This Design on the card's menu, Library → Selected Design or the command palette. The program reads the design, solves it to learn every depth, writes the lesson and starts it. The library design itself is not opened and is never changed; you build in a new design. The lesson has these steps:

  1. Start a new design with the original's gear, symmetry order and mirror setting and a preform shaped like its rough.
  2. One step for each tier, in cutting order, listing what to type into the tier form: angle, Meets, name and indices.
  3. A step of its own for the concave tiers, placed where the cutting sheet puts them.
  4. Solve and check; the step finishes when the result is a closed solid.
  5. Compare with the original. The lesson holds the original as the Baseline, and the step finishes when every tier is cut as in the original and every solved depth is within one percent of the original's.

The first tier of each block (girdle, pavilion, crown) states its depth with an exact scale value, because the solver needs one such tier in every block. For the other tiers, the program tries the lesson before it shows it: it types every tier through the tier form, solves the result, and uses named facets or an unspecified vertex only for a tier that lands within 0.4 percent of its original depth. Every other tier states an exact scale value, and the step says so. A design of more than 40 flat tiers is grouped into steps of up to six tiers. No lesson is made for a design with no tiers, one that has only an angle table, or one that does not solve. A finished lesson's Done mark is saved under the library design's id.

Library card menu with the Build This Design entry
Fig. 34 — The card menu of a library design: Generate Previews, Compute Tilt Curves, Ignore, Exclude from Planner, Build This Design and Add Tag.

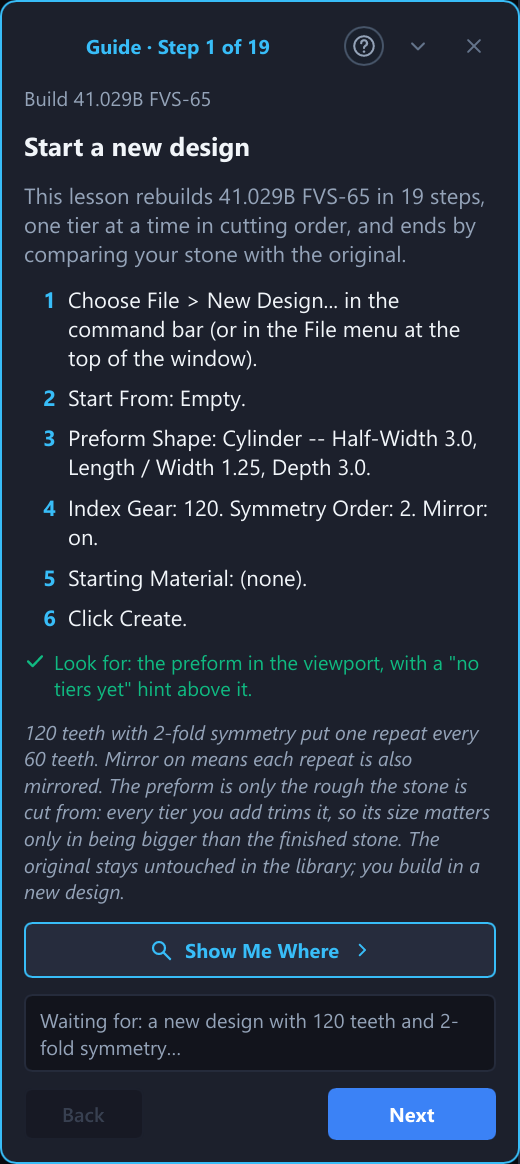

Guide panel on step 1 of 19, Start a new design
Fig. 35 — The guide panel on step 1 of 19 of a lesson for 41.029B FVS-65, Start a new design: New Design, start from Empty, a cylinder preform, index gear 120, symmetry order 2 with mirror on, no material yet, then Create, a line saying what to look for, a Show Me Where button and the Waiting for chip.

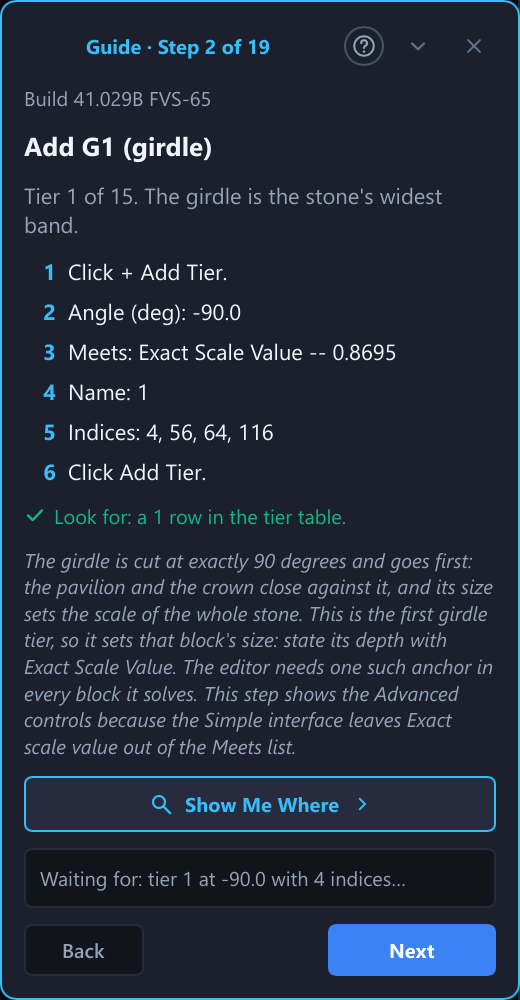

Guide panel on step 2 of 19, Add G1 (girdle)
Fig. 36 — Step 2 of 19, Add G1 (girdle), tier 1 of 15: angle -90.0, Meets Exact scale value 0.8695, name 1 and its indices, with a Show Me Where button and the Waiting for chip below the actions and Back and Next at the bottom.

16Interface: Simple and Advanced, preferences, help

Simple and Advanced

One switch, the Simple | Advanced pill at the top left of the window (also in Edit → Preferences...), sets how many controls the whole program shows. Simple shows what most designs need and Advanced shows every control. The switch only hides or shows controls: designs, settings and files are never affected, and a hidden control keeps its value and still applies. Where a hidden setting is not at its default, the panel says “Some advanced settings are in use. Switch to Advanced to see them.” A new installation starts in Simple; an installation used before the switch existed stays in Advanced. Simple hides, for example, the tier table's mast, solve, orbit and imported columns, the Schedule tab, Deep Solve, Set Baseline and Compare on the command bar, the Edit as Text and Angle Sweep commands, and the advanced render settings. Chapter 17 of the user manual (apps/pleochroma-cut/docs/manual/17-preferences-and-accessibility.md) lists them all.

Preferences

Edit → Preferences... (Ctrl+,) has these sections: Interface, Appearance, Direct Manipulation, Updates and Tutorials. Interface Scale offers Automatic and eight fixed scales from 75 % to 200 %, and applies at the next start. High Contrast switches to near-black backgrounds, white text, visible borders and bright accents. It applies at once and covers the main window and the Compare and Rough Planner windows; the colors that carry meaning (the curve colors of the tilt graph, for example) and the rendered pictures keep their own colors. Larger Handles makes the angle, depth and index handles about 60 % bigger. Snap to Gear Steps When Dragging is the setting of the Snap button, and the app also remembers the Slice tool's Symmetric button. The Slice tool itself starts off in every session. Check for New Versions is off until you allow it; when it is on, the program asks GitHub once a day whether a newer release exists, and Check Now asks at once. Every choice is saved automatically.

Keyboard and screen readers

Every button, switch, list and field of the dialogs and windows can be reached with Tab and Shift+Tab, pressed with Space or Enter, and shows a bright ring while it has the keyboard. Lists are one Tab stop with Up and Down inside. Icon buttons are at least 20 pixels square, and a screen reader hears each button's name, whether a switch is on and which list row is selected. Hover any control for a one-sentence tooltip that says what it does and, when it is greyed out, why.

Help

Help → User Manual opens the manual in a window of its own, built into the program, with a chapter list, a search box that looks through every chapter, and Back and Forward buttons. Many panels carry a small ? button that opens the manual at the section about that panel, and F1 opens the page for whatever is on screen. Help → Glossary lists every term of the manual's glossary with a search box.

Command palette

Ctrl+K or Ctrl+Shift+P (also Edit → Command Palette...) opens one small window that lists the program's actions, more than 80 of them in seven categories: File, Edit, View, Tiers, Solve, Tools and Help. Type a few letters of a name. The letters only have to appear in order, so dsolve finds Deep Solve. The start of a word counts for more, every word you type must match, and a match in the title beats a match in the hidden search words. Before you type, the commands you ran lately come first, up to eight; the list is not saved between sessions. A command that cannot run now is shown dimmed with its reason (for example “Open or create a design first”), and the palette follows the same rules as the matching button, including a tutorial's locks. It lists actions, not data: it does not search designs, tiers or files.

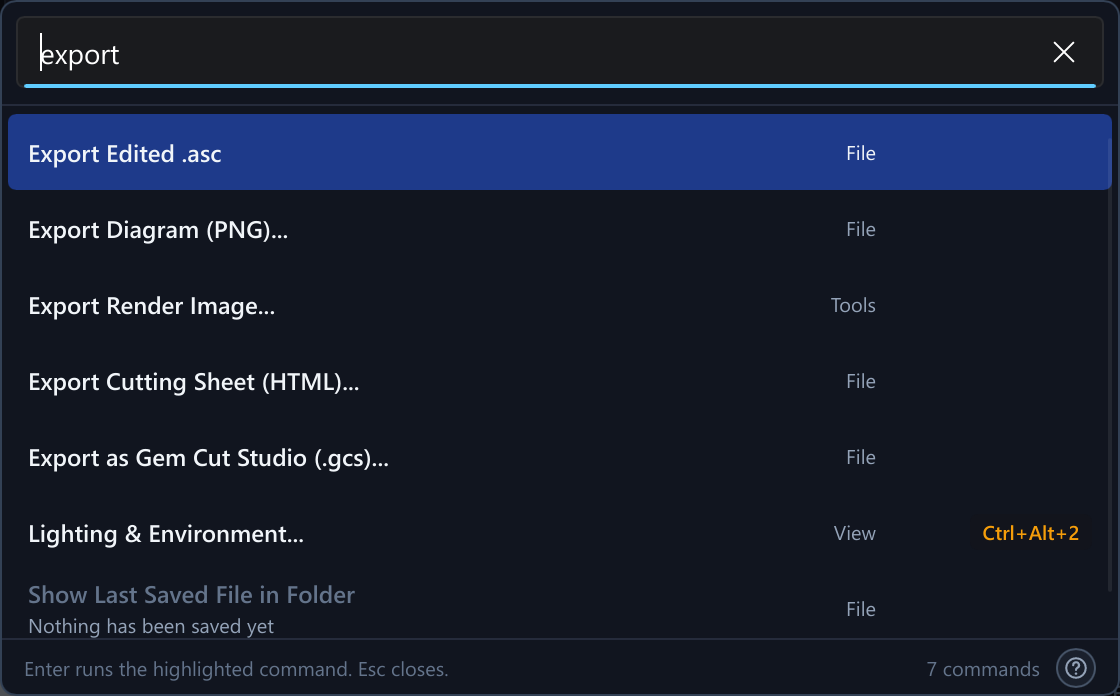

The command palette with the word export typed and the matching commands listed
Fig. 37 — The command palette with “export” typed: the matching actions with their categories and shortcuts, and one dimmed row, Show Last Saved File in Folder, with its reason (“Nothing has been saved yet”).

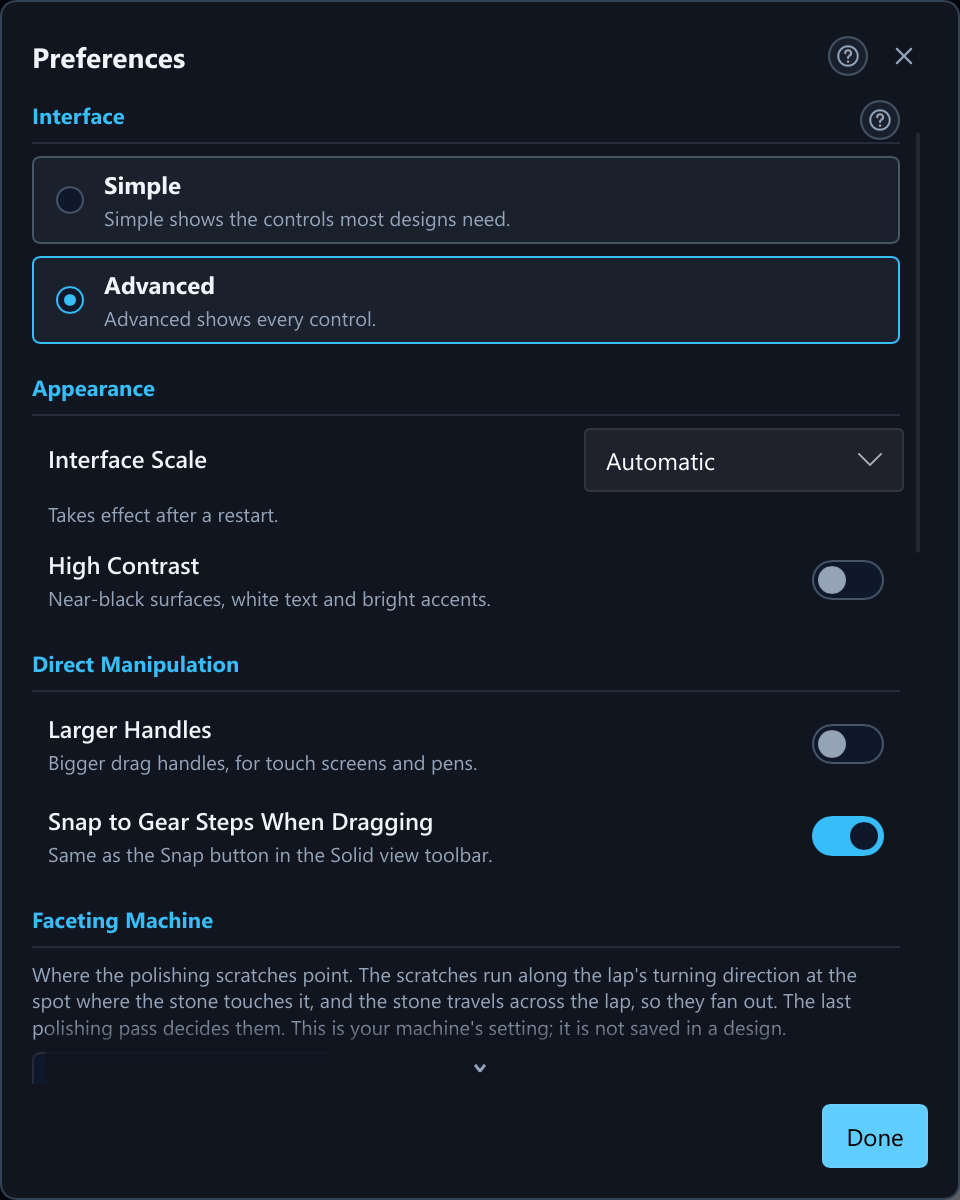

The Preferences dialog: Interface, Appearance, Direct manipulation and Faceting Machine
Fig. 38 — The Preferences dialog: the Simple and Advanced choice, Interface Scale and High Contrast, Larger Handles and Snap to Gear Steps When Dragging, and the Faceting Machine section (the direction of the polishing scratches), with Done at the bottom; the Updates section (Check for New Versions) follows further down.

17Install, build and the command line

The browser version needs no installation (see the web app page). For the design library, GPU and remote rendering, get Pleochroma for Windows from the Microsoft Store, https://apps.microsoft.com/store/detail/9PF7KR401SNC, where the Store keeps it updated, download the desktop application from the downloads section of the overview, or install or build it with Cargo as below. Then start with the user manual. Windows, Linux and macOS are tested.

Install with Cargo

The workspace uses Rust edition 2024 and needs rust-version = "1.95" or newer (workspace Cargo.toml), so install Rust with rustup and run rustup update stable. On Linux and macOS the installer is curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh; on Windows use winget install --id Rustlang.Rustup or rustup-init.exe from rustup.rs, whose installer also offers to set up the MSVC C++ build tools.

terminal — install from crates.io
# CPU-only build
cargo install pleochroma-cut

# with the GPU path-tracing backend
cargo install pleochroma-cut --features gpu

# then start it (HDR environment-map loading is always included)
pleochroma-cut

# optional: the coordinator / remote render worker
cargo install pleochroma-worker --features worker
terminal — build from source
git clone https://github.com/suitable-name/pleochroma.git
cd pleochroma
cargo run -p pleochroma-cut --release

# with the GPU compute kernel
cargo run -p pleochroma-cut --release --features gpu

The repository's own build scripts (scripts/pgo-build.ps1, scripts/pgo-bolt-build.sh) make the Windows and Linux builds; on macOS, install with Cargo. Every crate's crates.io and docs.rs pages are listed in the workspace table, and the renderer library's API reference is docs.rs/pleochroma. The remote worker quick start and the headless pleochroma-worker render command are on the distributed rendering page.

The desktop app writes a log file (pleochroma-cut.log, next to the executable, falling back to the temp directory) for diagnosing a background-thread failure. Verbosity follows RUST_LOG, defaulting to warn everywhere and info for pleochroma and pleochroma_cut (apps/pleochroma-cut/src/main.rs). The library is a local database file, facet_diagrams.sqlite: the one in the folder the program is started from if it exists there, otherwise the one beside settings.toml, created on the first start (PLEOCHROMA_LIBRARY names any other file). Settings are saved automatically to settings.toml (in %APPDATA%\pleochroma-cut on Windows, ~/Library/Application Support/pleochroma-cut on macOS, and $XDG_CONFIG_HOME/pleochroma-cut or ~/.config/pleochroma-cut on Linux); a damaged file is renamed aside and the defaults are used.

The command-line tool

pleochroma-cli runs the same solver, optimizer, retarget gate and sweep as the editor without a window or a GPU, so a number printed there is the number the editor shows. A design is a .psdd, .asc, .gem or .gcs file, read from its extension. Every command that takes a design takes several, for example pleochroma-cli metrics *.psdd --csv; each runs as it would alone, and a design that fails prints its error under its name while the others still run.

CommandWhat it does
infoName, gear, symmetry, preform, material and the tier list, with each tier's standard code. Does not solve.
solveSolves every tier, checks that the facets enclose a stone and lists the manufacturability warnings; --out saves a .psdd, which also converts an .asc, .gem or .gcs.
metricsTable-up windowing, brilliance, extinction, fire and scintillation, the proportions and the yield; --tilt adds the tilt averages.
validateThe warnings and the Good, Check or Problem verdict of the status strip.
optimizeThe Optimize tab's search, with ranked candidates; --budget (default 800), --starts (1 to 32, default 8), --seed, --preset; --out saves the best.
retargetThe Retarget dialog's engine and validity gate for another material (--mode shift|optimize, --crown-fraction, --crown-ratio, --no-keep-look, --girdle-allowance, which thickens the girdle by up to 10 % as the dialog does but is off unless given).
sweepSets one tier to every angle of a range and scores each one (--csv).
exportWrites .asc, .psdd, .gcs or the cutting sheet as .html.
render, tilt-videoRender a job file made by the render queue (section 14).
terminal — command-line tool (no window)
# from a clone of the repository (an installed binary is just: pleochroma-cli info round.asc)
cargo run -p pleochroma-cli --release -- info round.asc
cargo run -p pleochroma-cli --release -- solve round.asc --out round.psdd
cargo run -p pleochroma-cli --release -- metrics round.psdd --material Sapphire --json
cargo run -p pleochroma-cli --release -- validate round.asc --json
cargo run -p pleochroma-cli --release -- optimize round.psdd --preset brilliance --budget 400 --starts 4 --seed 7 --out better.psdd
cargo run -p pleochroma-cli --release -- retarget round.psdd --material Sapphire --crown-fraction 0.33 --out sapphire.psdd
cargo run -p pleochroma-cli --release -- sweep round.psdd --tier "Pavilion Main" --from 39 --to 43 --step 0.5 --csv sweep.csv
cargo run -p pleochroma-cli --release -- export round.psdd --format html --out sheet.html

# every command has its own help page
cargo run -p pleochroma-cli --release -- retarget --help

Angles are positive numbers, as the tier table shows them: the tier says which side of the girdle it is on, and a sign in front is ignored. Text reports and CSV print every angle unsigned, whereas --json keeps the signed convention of the design files, in which a pavilion angle is negative. A tier is named by its name (P1, G1/G2) or by #N, the Nth row of the tier list. --material NAME is a built-in or a custom material (from --db FILE, a design library that is opened read-only, or carried by the design file), --ri N a bare flat refractive index, and --lighting NAME chooses the light the score is taken under (the Grading tray by default).

Exit code 0 means done, 1 a wrong command line, 2 a design that cannot be used or a result that was refused (nothing is written), 3 a file that could not be read or written, 4 a validate verdict of Problem and 5 a failed or stopped render. A file named by --out is written only when the command succeeds. Text, JSON and CSV output are deterministic: the same command on the same files prints the same bytes, and the result of optimize does not depend on the number of processor cores. retarget accepts only a Valid result, since a command line has nobody to look at the stone. .gcs export is experimental, as in the editor. A newer release is named in one line on standard error, never on standard output; --no-update-check turns that off. The tool lives in apps/pleochroma-cli.

Ray-Traced and Path-Traced

Edit has Solid, Ray-Traced (key 5), Path-Traced and Diagram, and Solid with a tracer draws the facet edges over its picture; Live Render also offers Ray-Traced. Advanced settings expose Anti-Aliasing and Fire. Export freezes the chosen engine and options; thumbnails can use Ray-Traced, and Compare uses eight taps with Fire.

Ray-Traced is a deterministic approximation: one d-line index, or three fixed indices with Fire, RGB absorption tint and 1/4/8/16 AA taps. It finishes at the tap count without denoising. It omits polarization, birefringent doubling, scattering, zoning and edge rounding. Path-Traced retains the spectral model. Optical metrics, tilt sweeps and diagnostics keep their separate analytic tracer.

Retarget for Material dialog with the Ray-Traced switch, before and after side by side
Fig. 39 — Retarget for Material with the Ray-Traced switch: the same Astryx Star retarget to Sapphire, before and after side by side at eight anti-aliasing taps, with the note on what Ray-Traced leaves out above the pictures.
